TPS74801DRCR Linear Voltage Regulator IC Positive Adjustable 1 Output 1.5A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS74801DRCR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Adjustable | Number Of Regulators: | 1 |
|---|---|---|---|
| Voltage - Input (Max): | 5.5 V | Voltage - Output (Min/Fixed): | 0.8 V |
| Voltage - Output (Max): | 3.6 V | Voltage Dropout (Max): | 0.16V @ 1.5A |
| Current - Output: | 1.5A | PSRR: | 50dB ~ 30dB (1kHz ~ 300kHz) |
| High Light: | TPS74801DRCR Linear Voltage Regulator IC,1 Output Voltage Regulator IC,1.5A Voltage Regulator IC |
||
Product Description
SN74AVC2T45YZPR Voltage Level Translator Bidirectional 1 Circuit 2 Channel 500Mbps
Specifications of TPS74801DRCR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 3.6V |
| Voltage Dropout (Max) | 0.16V @ 1.5A |
| Current - Output | 1.5A |
| PSRR | 50dB ~ 30dB (1kHz ~ 300kHz) |
| Control Features | Enable, Power Good, Soft Start |
| Protection Features | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |

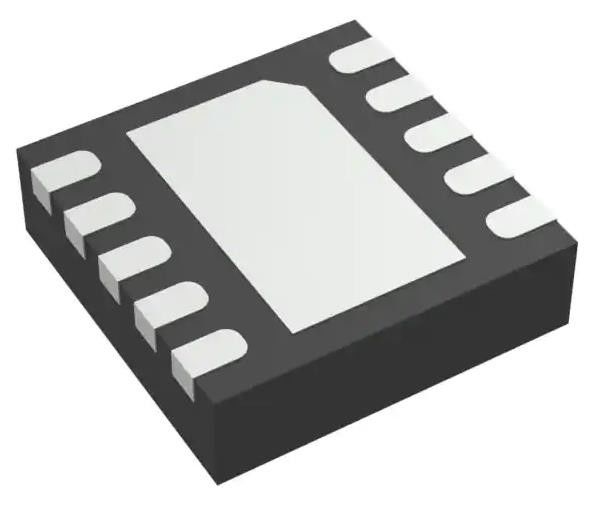

| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-VSON (3x3) |
| Base Product Number | TPS74801 |
Features of TPS74801DRCR
• VOUT range: 0.8 V to 3.6 V
• Ultra-low VIN range: 0.8 V to 5.5 V
• VBIAS range 2.7 V to 5.5 V
• Low dropout: 60 mV typical at 1.5 A, VBIAS = 5 V
• Power good (PG) output allows supply monitoring or provides a sequencing signal for other supplies
• 2% accuracy over line, load, and temperature
• Programmable soft-start provides linear voltage start-up
• VBIAS permits low VIN operation with good transient response
• Stable with any output capacitor ≥ 2.2 μF
• Available in small, 3-mm × 3-mm × 1-mm VSON-10 and 5-mm × 5-mm VQFN-20 packages
