FDD16AN08A0 Transistor IC Chip TO-252AA ADE Chip 75V 9A 50A 135W
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | FDD16AN08A0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Drain To Source Voltage (Vdss): | 75 V | Current - Continuous Drain (Id) @ 25°C: | 9A (Ta), 50A (Tc) |
|---|---|---|---|
| Drive Voltage (Max Rds On, Min Rds On): | 6V, 10V | Rds On (Max) @ Id, Vgs: | 16mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id: | 4V @ 250µA | Gate Charge (Qg) (Max) @ Vgs: | 47 NC @ 10 V |
| High Light: | FDD16AN08A0 Transistor IC Chip,TO-252AA ADE Chip,Transistor ADE Chip |
||
Product Description

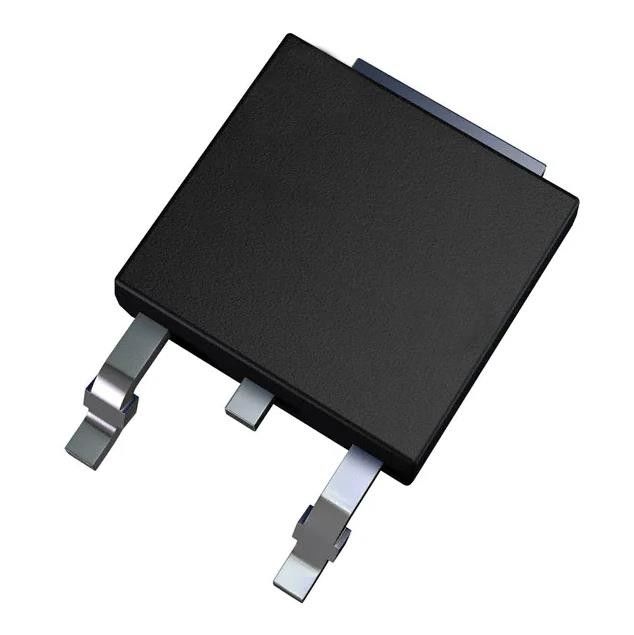

FDD16AN08A0 Transistor IC Chip 75V 9A 50A 135W Surface Mount TO-252AA
Features of FDD16AN08A0
RDS(on) = 13 mΩ ( Typ.) @ VGS = 10 V, ID = 50 A
QG(tot) = 31 nC ( Typ.) @ VGS = 10 V
Low Miller Charge
Low Qrr Body Diode
UIS Capability (Single Pulse and Repetitive Pulse)
Product Attributes of FDD16AN08A0
|
Technology
|
MOSFET (Metal Oxide)
|
|
Drain to Source Voltage (Vdss)
|
75 V
|
|
Current - Continuous Drain (Id) @ 25°C
|
9A (Ta), 50A (Tc)
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
6V, 10V
|
|
Rds On (Max) @ Id, Vgs
|
16mOhm @ 50A, 10V
|
|
Vgs(th) (Max) @ Id
|
4V @ 250µA
|
|
Gate Charge (Qg) (Max) @ Vgs
|
47 nC @ 10 V
|
|
Vgs (Max)
|
±20V
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
1874 pF @ 25 V
|
|
FET Feature
|
-
|
|
Power Dissipation (Max)
|
135W (Tc)
|
|
Operating Temperature
|
-55°C ~ 175°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Supplier Device Package
|
TO-252AA
|
|
Package / Case
|
TO-252-3, DPak (2 Leads + Tab), SC-63
|
|
Base Product Number
|
FDD16AN08
|
Applications of FDD16AN08A0
• Battery Protection Circuit
• Motor drives and Uninterruptible Power Supplies
• Synchronous Rectification
Environmental & Export Classifications of FDD16AN08A0
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
