BUK9Y14-40B 115 Transistor IC Chip 40V 56A 85W LFPAK56 Power-SO8 N Channel
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | BUK9Y14-40B,115 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Drain To Source Voltage (Vdss): | 40 V | Current - Continuous Drain (Id) @ 25°C: | 56A (Tc) |
|---|---|---|---|
| Rds On (Max) @ Id, Vgs: | 11mOhm @ 20A, 10V | Vgs(th) (Max) @ Id: | 2V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs: | 21 NC @ 5 V | Vgs (Max): | ±15V |
| High Light: | BUK9Y14-40B 115 Transistor IC,40V 56A Transistor IC Chip,LFPAK56 Power-SO8 |
||
Product Description

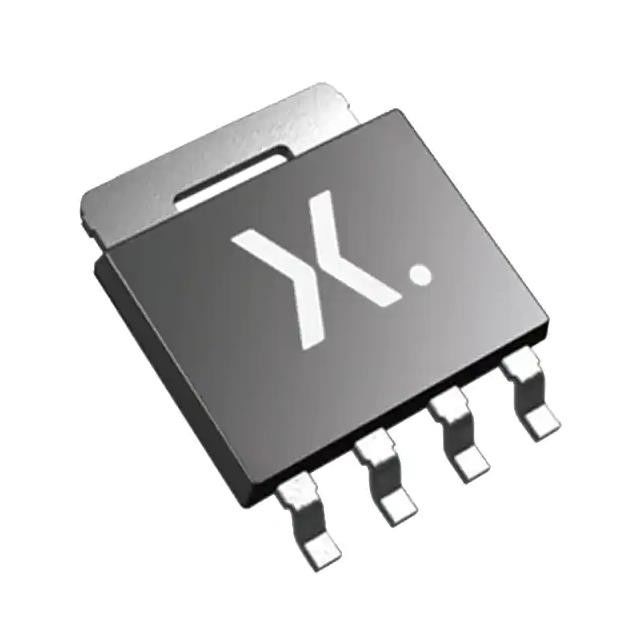

BUK9Y14-40B 115 Transistor IC Chip N-Channel 40 V 56A 85W LFPAK56 Power-SO8
Features of BUK9Y14-40B
Low conduction losses due to low
on-state resistance
Q101 compliant
Suitable for logic level gate drive
sources
Suitable for thermally demanding
environments due to 175 °C rating
Product Attributes of BUK9Y14-40B
|
Product
|
BUK9Y14-40B, 115
|
|
FET Type
|
N-Channel
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
Drain to Source Voltage (Vdss)
|
40 V
|
|
Current - Continuous Drain (Id) @ 25°C
|
56A (Tc)
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
5V
|
|
Rds On (Max) @ Id, Vgs
|
11mOhm @ 20A, 10V
|
|
Vgs(th) (Max) @ Id
|
2V @ 1mA
|
|
Gate Charge (Qg) (Max) @ Vgs
|
21 nC @ 5 V
|
|
Vgs (Max)
|
±15V
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
1800 pF @ 25 V
|
|
FET Feature
|
-
|
|
Power Dissipation (Max)
|
85W (Tc)
|
|
Operating Temperature
|
-55°C ~ 175°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Supplier Device Package
|
LFPAK56, Power-SO8
|
|
Package / Case
|
SC-100, SOT-669
|
|
Base Product Number
|
BUK9Y14
|
Application of BUK9Y14-40B
Air bag
Automotive ABS systems
Automotive transmission control
Diesel injection systems
Fuel pump and injection
Motors, lamps and solenoids
Environmental & Export Classifications of BUK9Y14-40B
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
