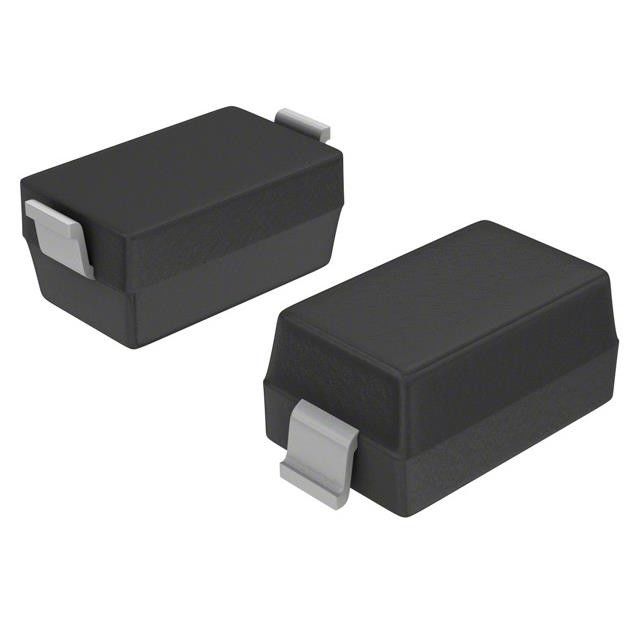

SOD-123 Ade Chip BZT52C5V1-7-F Zener Diode IC 5.1V 500MW Power Dissipation
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | BZT52C5V1-7-F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Zener (Nom) (Vz): | 5.1 V | Tolerance: | ±6% |
|---|---|---|---|
| Power - Max: | 60 Ohms | ICurrent - Reverse Leakage @ Vr: | 2 µA @ 2 V |
| Operating Temperature: | -65°C ~ 150°C | Package / Case: | SOD-123 |
| High Light: | BZT52C5V1-7-F Zener Diode IC,SOD-123 Ade Chip,Ade Chip BZT52C5V1-7-F |
||
Product Description
BZT52C5V1-7-F Transistor IC Chip Zener Diode 5.1 V 500 MW ±6% SOD-123
Features of BZT52C5V1-7-F
Planar Die Construction
500mW Power Dissipation
General Purpose, Medium Current
Ideally Suited for Automated Assembly Processes
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Notes 3 & 4)
Qualified to AEC-Q101 Standards for High Reliability
Case: SOD123
Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe (Lead Free Plating). Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.010 grams (Approximate)
Product Attributes of BZT52C5V1-7-F
|
Mfr
|
Diodes
|
|
Series
|
-
|
|
Product
|
BZT52C5V1-7-F
|
|
Voltage - Zener (Nom) (Vz)
|
5.1 V
|
|
Tolerance
|
±6%
|
|
Power - Max
|
500 mW
|
|
Impedance (Max) (Zzt)
|
60 Ohms
|
|
Current - Reverse Leakage @ Vr
|
2 µA @ 2 V
|
|
Voltage - Forward (Vf) (Max) @ If
|
900 mV @ 10 mA
|
|
Operating Temperature
|
-65°C ~ 150°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
SOD-123
|
|
Supplier Device Package
|
SOD-123
|
|
Base Product Number
|
BZT52
|
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0050 |
