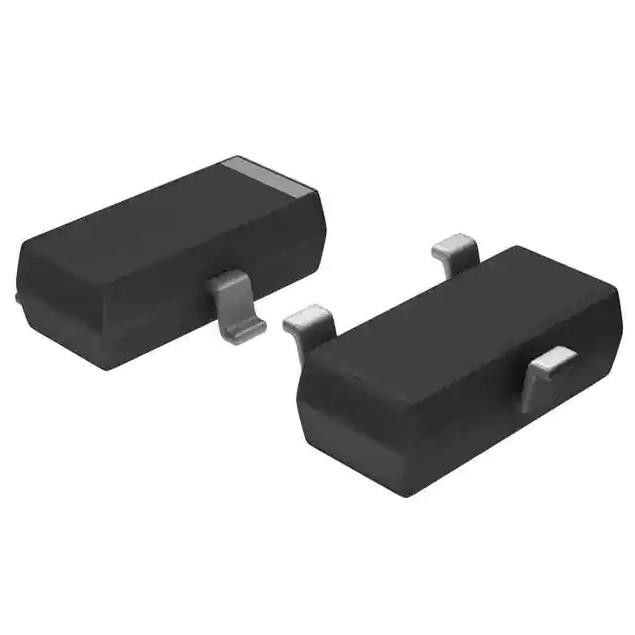

BSS138 Transistor IC Chip 50V 220mA 350mW Surface Mount IC SOT-23 150°C
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | BSS138 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Drain To Source Voltage (Vdss): | 50 V | Current - Continuous Drain (Id) @ 25°C: | 220mA (Ta) |
|---|---|---|---|
| Drive Voltage (Max Rds On, Min Rds On): | 4.5V, 10V | Rds On (Max) @ Id, Vgs: | 3Ohm @ 500mA, 10V |
| Power Dissipation (Max): | 350mW (Ta) | Operating Temperature: | 150°C (TJ) |
| High Light: | BSS138 Transistor IC Chip,50V 220mA Transistor IC Chip,350mW Surface Mount IC |
||
Product Description
BSS138 Transistor IC Chip 50 V 220mA (Ta) 350mW (Ta) Surface Mount SOT-23
Features of BSS138
Advanced trench process technology
High density cell design for ultra low on-resistance
Product Attributes of BSS138
|
Product
|
BSS138
|
|
FET Type
|
N-Channel
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
Drain to Source Voltage (Vdss)
|
50 V
|
|
Current - Continuous Drain (Id) @ 25°C
|
220mA (Ta)
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
4.5V, 10V
|
|
Rds On (Max) @ Id, Vgs
|
3Ohm @ 500mA, 10V
|
|
Vgs(th) (Max) @ Id
|
1.6V @ 250µA
|
|
Vgs (Max)
|
±20V
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
27 pF @ 25 V
|
|
FET Feature
|
-
|
|
Power Dissipation (Max)
|
350mW (Ta)
|
|
Operating Temperature
|
150°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Supplier Device Package
|
SOT-23
|
|
Package / Case
|
TO-236-3, SC-59, SOT-23-3
|
Application of BSS138
⚫ Load Switch for Portable Devices
⚫ DC/DC Converter
⚫ Direct logic-level interface:TTL/CMOS
Environmental & Export Classifications of BSS138
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8541.21.0095 |
