BSS138-7-F Transistor Integrated Circuit 50V 200mA N Channel Mosfet IC SOT-23-3
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | BSS138-7-F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Drain To Source Voltage (Vdss): | 50 V | Current - Continuous Drain (Id) @ 25°C: | 220mA (Ta) |
|---|---|---|---|
| Drive Voltage (Max Rds On, Min Rds On): | 10V | Rds On (Max) @ Id, Vgs: | 3.5Ohm @ 220mA, 10V |
| Vgs(th) (Max) @ Id: | 1.5V @ 250µA | Operating Temperature: | -55°C ~ 150°C (TJ) |
| High Light: | BSS138-7-F N Channel Mosfet IC,50V 200mA BSS138-7-F,SOT-23-3 Transistor Integrated Circuit |
||
Product Description

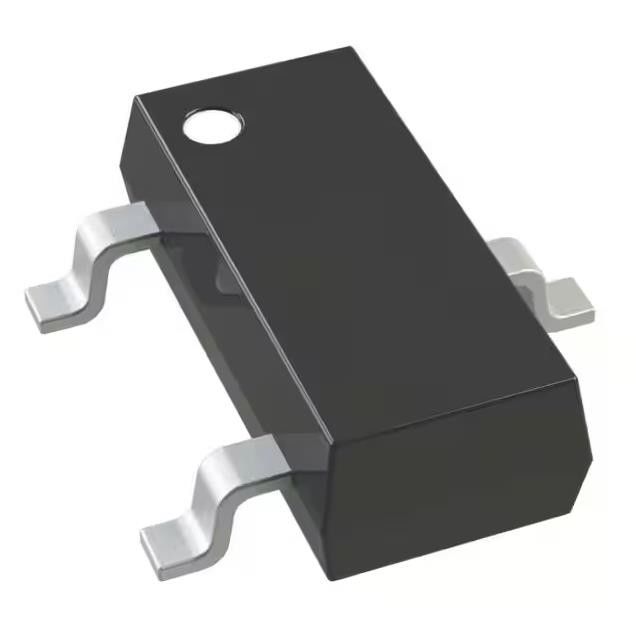

BSS138-7-F Transistor IC Chip N-Channel 50V 200mA 300mW Surface Mount SOT-23-3
Features of BSS138-7-F
Low On-Resistance
Low Gate Threshold Voltage
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
For automotive applications requiring specific change
Product Attributes of BSS138-7-F
|
Product
|
BSS138-7-F
|
|
FET Type
|
N-Channel
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
Drain to Source Voltage (Vdss)
|
50 V
|
|
Current - Continuous Drain (Id) @ 25°C
|
200mA (Ta)
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
10V
|
|
Rds On (Max) @ Id, Vgs
|
3.5Ohm @ 220mA, 10V
|
|
Vgs(th) (Max) @ Id
|
1.5V @ 250µA
|
|
Vgs (Max)
|
±20V
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
50 pF @ 10 V
|
|
FET Feature
|
-
|
|
Power Dissipation (Max)
|
300mW (Ta)
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Supplier Device Package
|
SOT-23-3
|
|
Package / Case
|
TO-236-3, SC-59, SOT-23-3
|
|
Base Product Number
|
BSS138
|
Mechanical Data of BSS138-7-F
Case: SOT23
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
Terminal Connections: See Diagram
Weight: 0.008 grams (Approximate)
| Part Number | Case | Packaging |
| BSS138-7-F | SOT23 ( Standard) | 3000/Tape & Reel |
| BSS138-13-F | SOT23 (Standard) | 10000/Tape & Reel |
