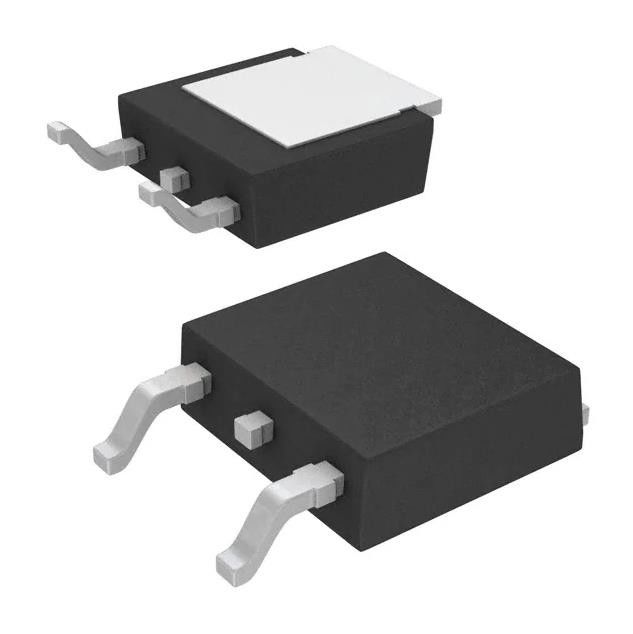

IRFR2607ZTRPBF Transistor IC Chip N Channel PG-TO252-3-901 DPAK 75V 42A
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | IRFR2607ZTRPBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| FET Type: | N-Channel | Drain To Source Voltage (Vdss): | 75 V |
|---|---|---|---|
| Current - Continuous Drain (Id) @ 25°C: | 42A (Tc) | Rds On (Max) @ Id, Vgs: | 22mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id: | 4V @ 50µA | Gate Charge (Qg) (Max) @ Vgs: | 51 NC @ 10 V |
| High Light: | IRFR2607ZTRPBF,75V 42A Transistor IC Chip,N Channel IRFR2607ZTRPBF |
||
Product Description
IRFR2607ZTRPBF Transistor IC Chip N-Channel 75 V 42A PG-TO252-3-901| DPAK
Features of IRFR2607ZTRPBF
Advanced Process Technology
Ultra Low On-Resistance
175°C Operating Temperature
Fast Switching
Repetitive Avalanche Allowed up to Tjamx
Lead-Free
Product Attributes of IRFR2607ZTRPBF
|
Product
|
IRFR2607ZTRPBF
|
|
FET Type
|
N-Channel
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
Drain to Source Voltage (Vdss)
|
75 V
|
|
Current - Continuous Drain (Id) @ 25°C
|
42A (Tc)
|
|
Rds On (Max) @ Id, Vgs
|
22mOhm @ 30A, 10V
|
|
Vgs(th) (Max) @ Id
|
4V @ 50µA
|
|
Gate Charge (Qg) (Max) @ Vgs
|
51 nC @ 10 V
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
1440 pF @ 25 V
|
|
FET Feature
|
-
|
|
Mounting Type
|
Surface Mount
|
|
Supplier Device Package
|
PG-TO252-3-901|DPAK
|
|
Package / Case
|
TO-252-3, DPak (2 Leads + Tab), SC-63
|
|
Base Product Number
|
IRFR2607
|
Environmental & Export Classifications of IRFR2607ZTRPBF
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.21.0095 |
Description of IRFR2607ZTRPBF
This HEXFET® Power MOSFET utilizes the latest processing techniques to achieve extremely low
on-resistance per silicon area. Additional features of this design are a 175°C junction operating
temperature, fast switching speed and improved repetitive avalanche rating. These features combine
to make this design an extremely efficient and reliable device for use in a wide variety of applications.
