LT3680IDD#TRPBF Buck Switching Regulator IC Positive Adjustable 0.79V 1 Output 3.5A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LT3680IDD#TRPBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Topology: | Buck | Output Type: | Adjustable |
|---|---|---|---|
| Number Of Outputs: | 1 | Voltage - Input (Min): | 3.6V |
| Voltage - Input (Max): | 36V | Voltage - Output (Min/Fixed): | 0.79V |
| Voltage - Output (Max): | 30V | Current - Output: | 3.5A |
| Frequency - Switching: | 230kHz ~ 2.45MHz | ||
Product Description
LT3680IDD#TRPBF Buck Switching Regulator IC Positive Adjustable 0.79V 1 Output 3.5A
Specifications of LT3680IDD#TRPBF
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3.6V |
| Voltage - Input (Max) | 36V |
| Voltage - Output (Min/Fixed) | 0.79V |
| Voltage - Output (Max) | 30V |
| Current - Output | 3.5A |
| Frequency - Switching | 230kHz ~ 2.45MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |

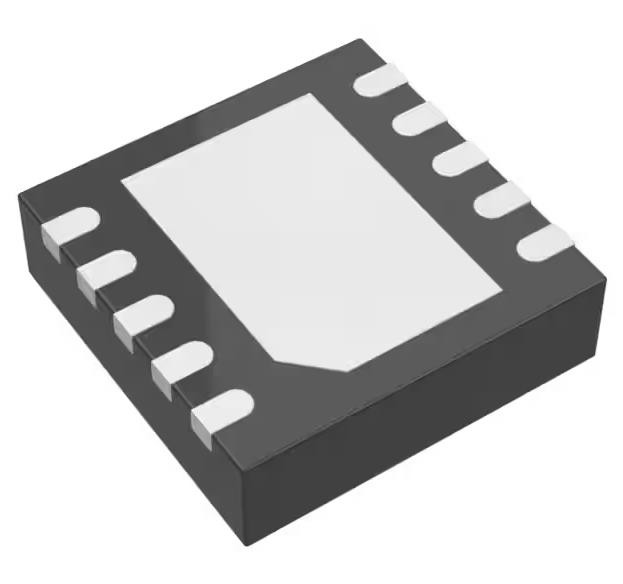

| Package / Case | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-DFN (3x3) |
| Base Product Number | LT3680 |
Features of LT3680IDD#TRPBF
■ Wide Input Voltage Range: 3.6V to 36V
■ 3.5A Maximum Output Current
■ Low Ripple (<15mVP-P) Burst Mode® Operation: IQ = 75µA at 12VIN to 3.3VOUT
■ Adjustable Switching Frequency: 200kHz to 2.4MHz
■ Low Shutdown Current: IQ < 0.5µA
■ Integrated Boost Diode
■ Synchronizable Between 250kHz to 2MHz
■ Power Good Flag
■ Saturating Switch Design: 95m On-Resistance
■ 0.790V Feedback Reference Voltage
■ Output Voltage: 0.79V to 30V
■ Thermal Protection
■ Soft-Start Capability
■ Small 10-Pin Thermally Enhanced MSOP and (3mm × 3mm) DFN Packages
Descriptions of LT3680IDD#TRPBF
■ Automotive Battery Regulation
■ Power for Portable Products
■ Distributed Supply Regulation
■ Industrial Supplies
■ Wall Transformer Regulation
Environmental & Export Classifications of LT3680IDD#TRPBF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
