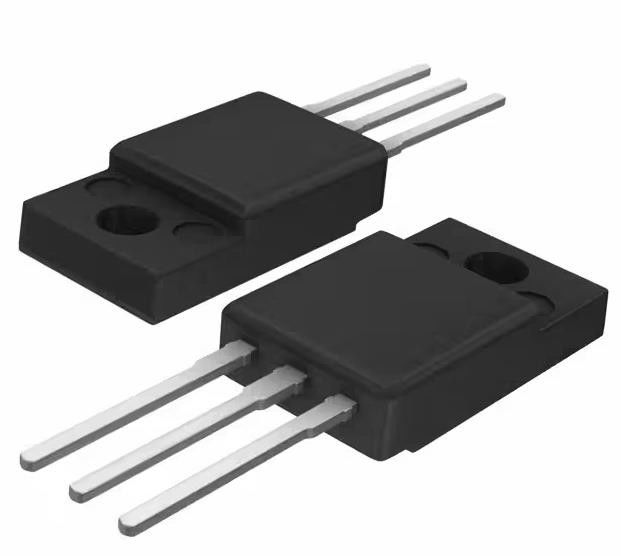

MJF15031G Bipolar (BJT) Transistor PNP 150 V 8 A 30MHz 2 W Through Hole TO-220FP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MJF15031G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Transistor Type: | PNP | Current - Collector (Ic) (Max): | 0.333333333 |
|---|---|---|---|
| Voltage - Collector Emitter Breakdown (Max): | 150 V | Vce Saturation (Max) @ Ib, Ic: | 500mV @ 100mA, 1A |
| Current - Collector Cutoff (Max): | 10µA | DC Current Gain (hFE) (Min) @ Ic, Vce: | 20 @ 4A, 2V |
| Power - Max: | 2 W | ||
Product Description
MJF15031G Bipolar (BJT) Transistor PNP 150 V 8 A 30MHz 2 W Through Hole TO-220FP
Specifications of MJF15031G
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | onsemi |
| Series | - |
| Package | Tube |
| Transistor Type | PNP |
| Current - Collector (Ic) (Max) | 0.333333333 |
| Voltage - Collector Emitter Breakdown (Max) | 150 V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 100mA, 1A |
| Current - Collector Cutoff (Max) | 10µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 20 @ 4A, 2V |
| Power - Max | 2 W |
| Frequency - Transition | 30MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Full Pack |
| Supplier Device Package | TO-220FP |
| Base Product Number | MJF15031 |
Features of MJF15031G
• Electrically Similar to the Popular MJE15030 and MJE15031
• No Isolating Washers Required, Reduced System Cost
• High Current Gain−Bandwidth Product
• UL Recognized, File #E69369, to 3500 VRMS Isolation
• These Devices are Pb−Free and are RoHS Compliant*
Descriptions of MJF15031G
Designed for general−purpose amplifier and switching applications, where the mounting surface of the device is required to be electrically isolated from the heatsink or chassis.
Environmental & Export Classifications of MJF15031G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0075 |
