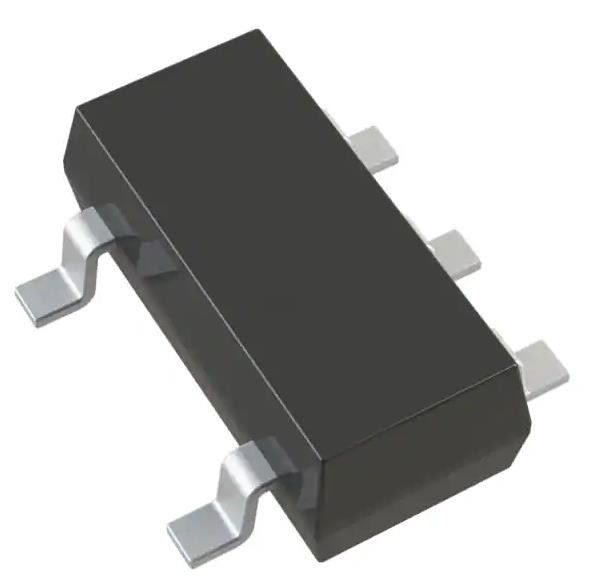

LTC6101HVAIS5#TRMPBF Current Sense Amplifier 1 Circuit TSOT-23-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LTC6101HVAIS5#TRMPBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Amplifier Type: | Current Sense | Number Of Circuits: | 1 |
|---|---|---|---|
| Gain Bandwidth Product: | 200 KHz | Current - Input Bias: | 100 NA |
| Voltage - Input Offset: | 85 µV | Current - Supply: | 350µA |
| Current - Output / Channel: | 1 MA | Voltage - Supply Span (Min): | 5 V |
Product Description
L6564TDTR PFC Transistor IC Chip Discontinuous (Transition) 10-SSOP
Specifications of LTC6101HVAIS5#TRMPBF
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Amplifier Type | Current Sense |
| Number of Circuits | 1 |
| Output Type | - |
| Slew Rate | - |
| Gain Bandwidth Product | 200 kHz |
| Current - Input Bias | 100 nA |
| Voltage - Input Offset | 85 µV |
| Current - Supply | 350µA |
| Current - Output / Channel | 1 mA |
| Voltage - Supply Span (Min) | 5 V |
| Voltage - Supply Span (Max) | 100 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| Base Product Number | LTC6101 |
Features of LTC6101HVAIS5#TRMPBF
* Supply Range:
- 5V to 100V, 105V Absolute Maximum (LTC6101HV)
- 4V to 60V, 70V Absolute Maximum (LTC6101)
* Low Offset Voltage: 300μV Max
* Fast Response: 1μs Response Time (0V to 2.5V on a 5V Output Step)
* Gain Configurable with 2 Resistors
* Low Input Bias Current: 170nA Max
* PSRR: 118dB Min
* Output Current: 1mA Max
* Low Supply Current: 250μA, VS = 12V
* Specified Temperature Range: –40°C to 125°C
* Operating Temperature Range: –55°C to 125°C
* Package Option for High Voltage Spacing
* Low Profile (1mm) SOT-23 (ThinSOT™) Package
Descriptions of LTC6101HVAIS5#TRMPBF
* Current Shunt Measurement
* Battery Monitoring
* Remote Sensing
* Power Management
Environmental & Export Classifications of LTC6101HVAIS5#TRMPBF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
