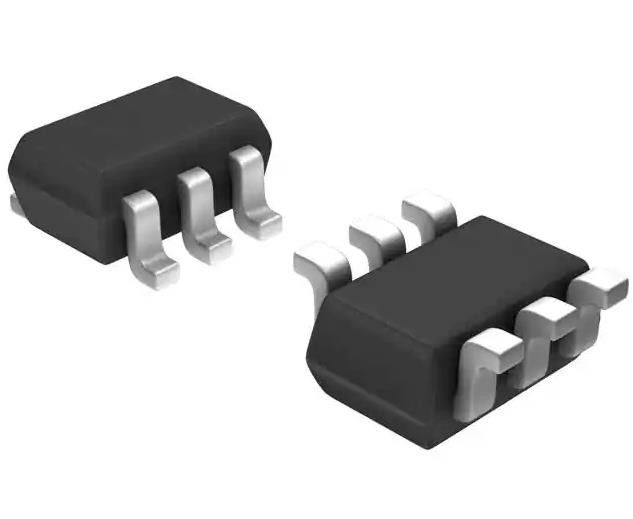

SMBT3946DW1T1G Bipolar Transistor Array NPN, PNP 40V 200mA 300MHz 250MHz 150mW
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SMBT3946DW1T1G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Transistor Type: | NPN, PNP | Current - Collector (Ic) (Max): | 200mA |
|---|---|---|---|
| Voltage - Collector Emitter Breakdown (Max): | 40V | Vce Saturation (Max) @ Ib, Ic: | 300mV @ 5mA, 50mA / 400mV @ 5mA, 50mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce: | 100 @ 10mA, 1V | Power - Max: | 150mW |
Product Description
SMBT3946DW1T1G Bipolar Transistor Array NPN, PNP 40V 200mA 300MHz 250MHz 150mW
Specifications of SMBT3946DW1T1G
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Bipolar Transistor Arrays | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Transistor Type | NPN, PNP |
| Current - Collector (Ic) (Max) | 200mA |
| Voltage - Collector Emitter Breakdown (Max) | 40V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 5mA, 50mA / 400mV @ 5mA, 50mA |
| Current - Collector Cutoff (Max) | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 10mA, 1V |
| Power - Max | 150mW |
| Frequency - Transition | 300MHz, 250MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-88/SC70-6/SOT-363 |
| Base Product Number | SMBT3946 |
Features of SMBT3946DW1T1G
• hFE, 100−300
• Low VCE(sat), ≤ 0.4 V
• Simplifies Circuit Design
• Reduces Board Space
• Reduces Component Count
• S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant
Descriptions of SMBT3946DW1T1G
The MBT3946DW1T1G device is a spin-off of our popular SOT−23/SOT−323 three-leaded device.
Environmental & Export Classifications of N25Q064A13ESE40F
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.21.0075 |
