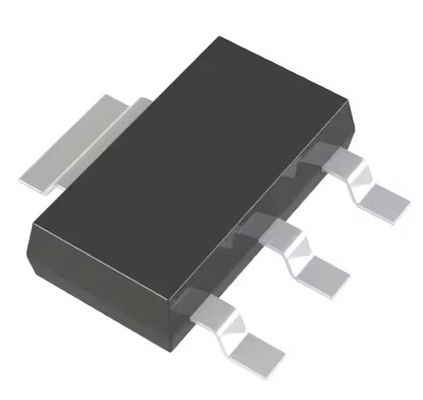

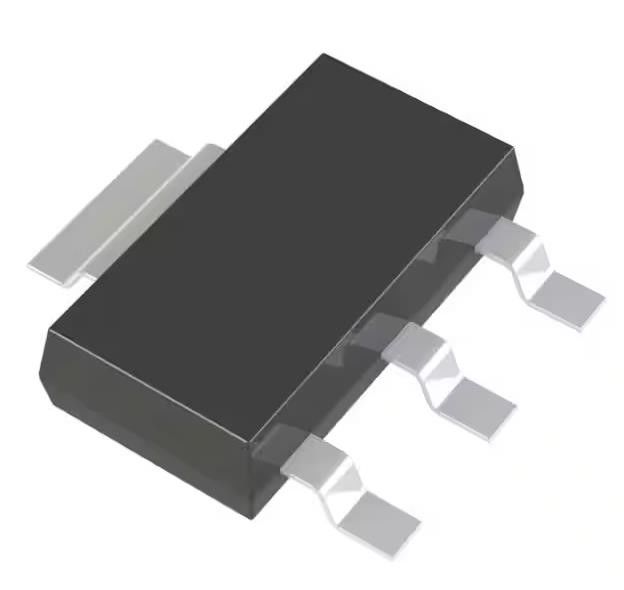

FZT955TA Bipolar (BJT) Transistor PNP 140 V 4 A 110MHz 3 W Surface Mount
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | FZT955TA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Current - Collector (Ic) (Max): | 0.166666667 | Voltage - Collector Emitter Breakdown (Max): | 140 V |
|---|---|---|---|
| Vce Saturation (Max) @ Ib, Ic: | 370mV @ 300mA, 3A | Current - Collector Cutoff (Max): | 50nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce: | 100 @ 1A, 5V | Power - Max: | 3 W |
| Frequency - Transition: | 110MHz | Operating Temperature: | -55°C ~ 150°C (TJ) |
Product Description
FZT955TA Bipolar (BJT) Transistor PNP 140 V 4 A 110MHz 3 W Surface Mount
Specifications of FZT955TA
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | Diodes Incorporated |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Transistor Type | PNP |
| Current - Collector (Ic) (Max) | 0.166666667 |
| Voltage - Collector Emitter Breakdown (Max) | 140 V |
| Vce Saturation (Max) @ Ib, Ic | 370mV @ 300mA, 3A |
| Current - Collector Cutoff (Max) | 50nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 1A, 5V |
| Power - Max | 3 W |
| Frequency - Transition | 110MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223-3 |
| Base Product Number | FZT955 |
Features of FZT955TA
* 4 Amps continuous current (10 Amps peak current)
* Very low saturation voltages
* Excellent gain characteristics specified up to 3 Amps
Environmental & Export Classifications of FZT955TA
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0075 |
