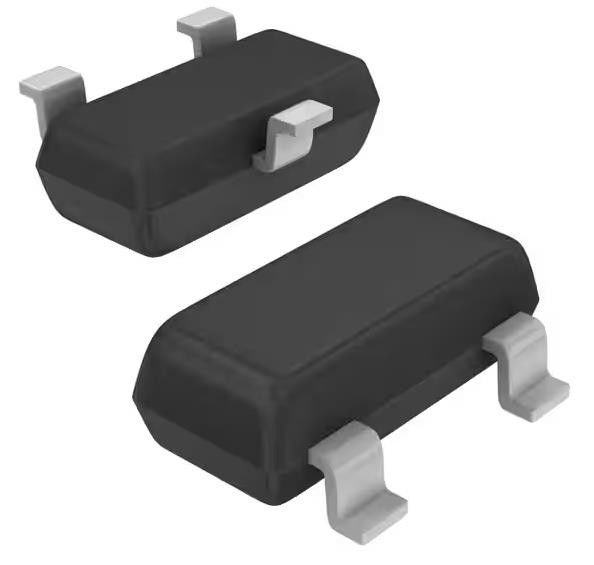

MMBT2222ALT1G Bipolar Transistor NPN 40 V 600 MA 300MHz 225 MW
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MMBT2222ALT1G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Current - Collector (Ic) (Max): | 600 MA | Voltage - Collector Emitter Breakdown (Max): | 40 V |
|---|---|---|---|
| Vce Saturation (Max) @ Ib, Ic: | 1V @ 50mA, 500mA | Current - Collector Cutoff (Max): | 10nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce: | 100 @ 150mA, 10V | Power - Max: | 225 MW |
| Frequency - Transition: | 300MHz | Operating Temperature: | -55°C ~ 150°C (TJ) |
| High Light: | MMBT2222ALT1G,40 V 600 mA NPN Bipolar Transistor,MMBT2222ALT1G NPN Bipolar Transistor |
||
Product Description
MMBT2222ALT1G Bipolar Transistor NPN 40 V 600 mA 300MHz 225 mW
TRANS NPN 40V 0.6A SOT23-3
Specifications of MMBT2222ALT1G
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Single Bipolar Transistors | |
| Mfr | onsemi |
| Series | Automotive, AEC-Q101 |
| Package | Tape & Reel (TR) |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 600 mA |
| Voltage - Collector Emitter Breakdown (Max) | 40 V |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 10nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 10V |
| Power - Max | 225 mW |
| Frequency - Transition | 300MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Base Product Number | MMBT2222 |
Features of MMBT2222ALT1G
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
• S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements;
AEC−Q101 Qualified and PPAP Capable
Descriptions of MMBT2222ALT1G
1. FR−5 = 1.0 0.75 0.062 in.
2. Alumina = 0.4 0.3 0.024 in. 99.5% alumina.
3. Reference SOA curve.
Environmental & Export Classifications of MMBT2222ALT1G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.21.0075 |
