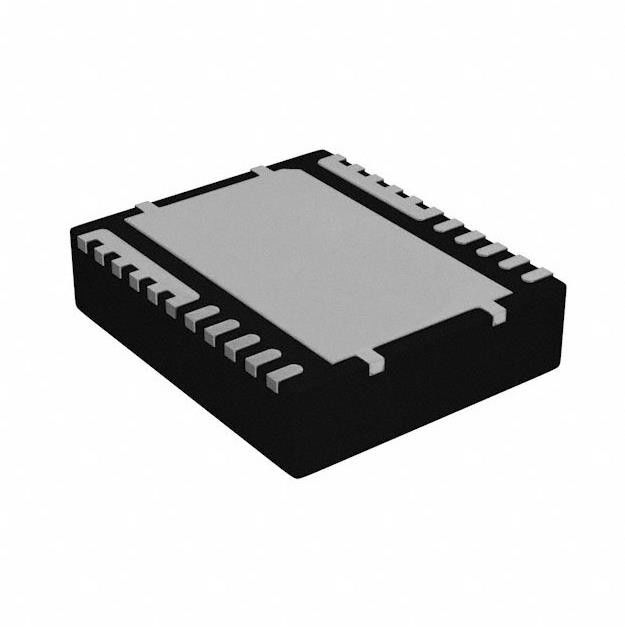

CSD95372AQ5M Converters Power IC Chip MOSFET 12-LSON-CLIP (5x6)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CSD95372AQ5M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Current - Output / Channel: | 60A | Current - Peak Output: | 90A |
|---|---|---|---|
| Voltage - Supply: | 4.5V ~ 5.5V | Voltage - Load: | 4.5V ~ 16V |
| Operating Temperature: | -55°C ~ 150°C (TJ) | Load Type: | Inductive |
| Technology: | Power MOSFET | Interface: | PWM |
Product Description
CSD95372AQ5M Converters Power IC Chip MOSFET 12-LSON-CLIP (5x6)
Half Bridge Driver Synchronous Buck Converters Power MOSFET 12-LSON-CLIP (5x6)
Specifications of CSD95372AQ5M
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Full Half-Bridge Drivers | |
| Mfr | Texas Instruments |
| Series | NexFET™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Output Configuration | Half Bridge |
| Applications | Synchronous Buck Converters |
| Interface | PWM |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Rds On (Typ) | - |
| Current - Output / Channel | 60A |
| Current - Peak Output | 90A |
| Voltage - Supply | 4.5V ~ 5.5V |
| Voltage - Load | 4.5V ~ 16V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit, Status Flag |
| Fault Protection | Over Temperature, Shoot-Through, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 12-PowerLFDFN |
| Supplier Device Package | 12-LSON-CLIP (5x6) |
| Base Product Number | CSD95372 |
Features of CSD95372AQ5M
• 60 A Continuous Operating Current Capability
• 92.4% System Efficiency at 30 A
• Ultra-Low Power Loss of 3.3 W at 30 A
• High Frequency Operation (up to 2 MHz)
• High Density - SON 5 x 6 mm Footprint
• Ultra-Low Inductance Package
• System Optimized PCB Footprint
• 3.3 V and 5 V PWM Signal Compatible
• Diode Emulation Mode with FCCM
• Analog Temperature Output
• Input Voltages up to 16 V
• Tri-State PWM Input
• Integrated Bootstrap Switch
• Optimized Dead Time for Shoot Through Protection
• RoHS Compliant – Lead-Free Terminal Plating
• Halogen Free
Applications of CSD95372AQ5M
• Multiphase Synchronous Buck Converter
– High Frequency Applications
– High Current, Low Duty Cycle Applications
• Point-of-Load DC-DC Converters
• Memory and Graphic Cards
• Desktop and Server VR11.x and VR12.x for V-Core Synchronous Buck Converters
Environmental & Export Classifications of CSD95372AQ5M
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
