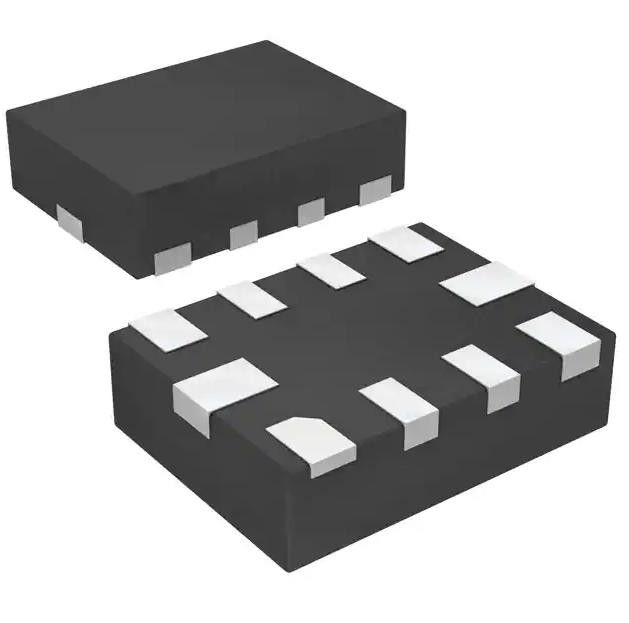

TS3USB3000RSER USB Switch IC 1 Channel 10-UQFN (2.0x1.5) 2.7V ~ 4.3V
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TS3USB3000RSER |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Applications: | USB | Switch Circuit: | DPDT |
|---|---|---|---|
| On-State Resistance (Max): | 9Ohm | Number Of Channels: | 1 |
| Voltage - Supply, Single (V+): | 2.7V ~ 4.3V | -3db Bandwidth: | 6.1GHz |
| Operating Temperature: | -40°C ~ 85°C (TA) | Package / Case 1: | 0-UFQFN |
Product Description
TS3USB3000RSER USB Switch IC 1 Channel 10-UQFN (2.0x1.5) 2.7V ~ 4.3V
IC USB SW/MHL DPDT 10UQFN
Specifications of TS3USB3000RSER
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches - Special Purpose | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Applications | USB |
| Multiplexer/Demultiplexer Circuit | - |
| Switch Circuit | DPDT |
| Number of Channels | 1 |
| On-State Resistance (Max) | 9Ohm |
| Voltage - Supply, Single (V+) | 2.7V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| -3db Bandwidth | 6.1GHz |
| Features | Bi-Directional, USB 2.0 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFQFN |
| Supplier Device Package | 10-UQFN (2.0x1.5) |
| Base Product Number | TS3USB3000 |
Features of TS3USB3000RSER
• VCC Range 2.3 V to 4.8 V
• Mobile Hi-Definition Link (MHL) Switch:
– Bandwidth (–3 dB): 6.1 GHz
– RON (Typical): 5.7 Ω
– CON (Typical): 1.6 pF
• USB Switch:
– Bandwidth (–3 dB): 6.1 GHz
– RON (Typical): 4.6 Ω
– CON (Typical): 1.4 pF
• Current Consumption: 30 µA (Typical)
• Special Features:
– IOFF Protection Prevents Current Leakage in
Powered-Down State (VCC and VBUS = 0 V)
– 1.8-V Compatible Control Inputs (SEL, OE)
– Overvoltage Tolerance (OVT) on all I/O Pins up to 5.5 V Without External Components
– Overvoltage Protection When 9-V Short to D+/-Pin
• ESD Performance:
– 3.5-kV Human Body Model (A114B, Class II)
– 1-kV Charged-Device Model (C101)
• 10-Pin UQFN Package (1.5-mm × 2-mm, 0.5-mm Pitch)
Appilications of TS3USB3000RSER
• Smartphones, Tablets, Mobile
• Portable Instrumentation
• Digital Still Cameras
Environmental & Export Classifications of TS3USB3000RSER
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
