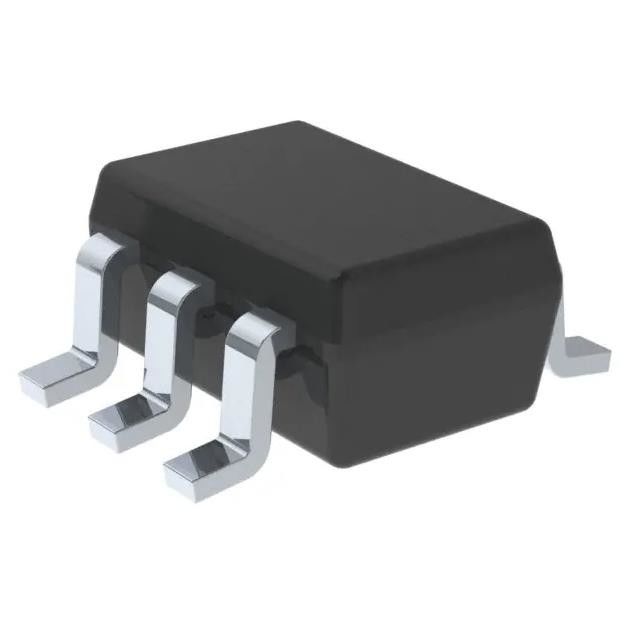

LMV601MGX/NOPB Transistor IC Chip OPAMP GP 1 CIRCUIT SC70-6 1V/µs
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LMV601MGX/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Slew Rate: | 1V/µs | Gain Bandwidth Product: | 1 MHz |
|---|---|---|---|
| Current - Input Bias: | 0.02 PA | Voltage - Input Offset: | 250 µV |
| Current - Supply: | 107µA | Current - Output / Channel: | 113 MA |
| Voltage - Supply Span (Min): | 2.7 V | Voltage - Supply Span (Max): | 5.5 V |
Product Description
LMV601MGX/NOPB Transistor IC Chip OPAMP GP 1 CIRCUIT SC70-6 1V/µs
General Purpose Amplifier 1 Circuit Rail-to-Rail SC-70-6
Specifications of LMV601MGX/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Amplifier Type | General Purpose |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 1V/µs |
| Gain Bandwidth Product | 1 MHz |
| Current - Input Bias | 0.02 pA |
| Voltage - Input Offset | 250 µV |
| Current - Supply | 107µA |
| Current - Output / Channel | 113 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-70-6 |
| Base Product Number | LMV601 |
Features of LMV601MGX/NOPB
• Typical 2.7-V Supply Values; Unless Otherwise Noted
• Ensured 2.7-V and 5-V Specifications
• Supply Current (Per Amplifier): 100 µA
• Gain Bandwidth Product: 1 MHz
• Shutdown Current (LMV601): 45 pA
• Turnon Time from Shutdown (LMV601): 5 µs
• Input Bias Current: 20 fA
Applications of LMV601MGX/NOPB
• Cordless and Cellular Phones
• Laptops
• PDAs
• PCMCIA and Audio
• Portable and Battery-Powered Electronic
Equipment
• Supply Current Monitoring
• Battery Monitoring
• Buffers
• Filters
• Drivers
Environmental & Export Classifications of LMV601MGX/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
