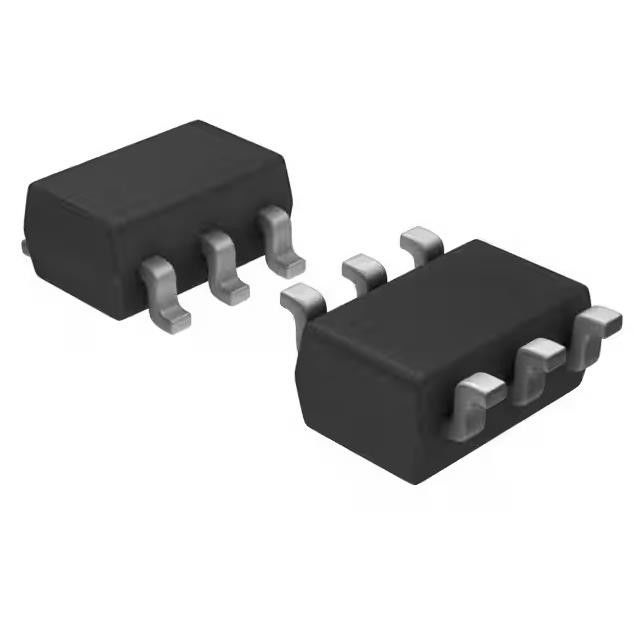

REF3430QDBVRQ1 Transistor IC Chip VREF Series 0.05% Sot23-6
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | REF3430QDBVRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Reference Type: | Series |
|---|---|---|---|
| Output Type: | Fixed | Voltage - Output (Min/Fixed): | 3V |
| Current - Output: | 10 MA | Tolerance: | ±0.05% |
| Temperature Coefficient: | 6ppm/°C | Noise - 0.1Hz To 10Hz: | 5µVp-p |
| High Light: | REF3430QDBVRQ1 Transistor IC,REF3430QDBVRQ1 IC Chip,Sot23-6 Transistor IC Chip |
||
Product Description
REF3430QDBVRQ1 Transistor Ic Chip Vref Series 0.05% Sot23-6
Series Voltage Reference IC Fixed 3V V ±0.05% 10 mA SOT-23-6
Specifications of REF3430QDBVRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Reference | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100, REF34xx |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Reference Type | Series |
| Output Type | Fixed |
| Voltage - Output (Min/Fixed) | 3V |
| Current - Output | 10 mA |
| Tolerance | ±0.05% |
| Temperature Coefficient | 6ppm/°C |
| Noise - 0.1Hz to 10Hz | 5µVp-p |
| Noise - 10Hz to 10kHz | 24µVrms |
| Voltage - Input | 3.5V ~ 12V |
| Current - Supply | 95µA |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
| Base Product Number | REF3430 |
Features of REF3430QDBVRQ1
• AEC-Q100 qualified with the following results:
– Device temperature grade 1: –40°C to +125°C ambient operating temperature
– Device HBM ESD classification level 2
– Device CDM ESD classification level C6
• Initial accuracy: ±0.05% (maximum)
• Temperature coefficient : 6 ppm/°C (maximum)
• Operating temperature range: −40°C to +125°C
• Output voltage options: 2.5V, 3.0V, 3.3V, 4.096V,5.0V
• Output current: ±10 mA
• Low quiescent current: 95 μA (maximum)
• Low shutdown mode current: 3 μA (maximum)
• Wide input voltage: 12 V
• Output 1/f noise (0.1 Hz to 10 Hz): 3.8 µVPP/V
• Excellent long-term stability 25 ppm/1000 hrs
• Available in 6-pin and 5-Pin SOT-23 package and 8-pin MSOP package
Applications of REF3430QDBVRQ1
• Body control modules
• On board chargers
• Traction inverters
• Battery management systems
• Advanced driver assistance systems
Environmental & Export Classifications of REF3430QDBVRQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
