INA214AQDCKRQ1 Transistor IC Chip Curr Sense 1 Circuit SC70-6
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | INA214AQDCKRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Slew Rate: | 0.4V/µs | Gain Bandwidth Product: | 30 KHz |
|---|---|---|---|
| Current - Input Bias: | 28 µA | Voltage - Input Offset: | 1 µV |
| Current - Supply: | 65µA | Voltage - Supply Span (Min): | 2.7 V |
| Voltage - Supply Span (Max): | 26 V | Operating Temperature: | -40°C ~ 125°C |
| High Light: | INA214AQDCKRQ1 Transistor IC,INA214AQDCKRQ1 IC Chip,SC70-6 Transistor IC Chip |
||
Product Description

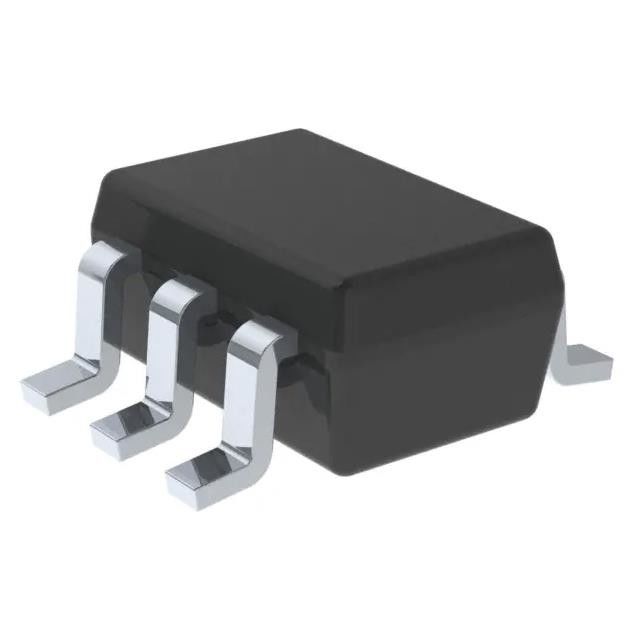

INA214AQDCKRQ1 Transistor Ic Chip Curr Sense 1 Circuit Sc70-6
Current Sense Amplifier 1 Circuit SC-70-6
Specifications of INA214AQDCKRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Amplifier Type | Current Sense |
| Number of Circuits | 1 |
| Output Type | - |
| Slew Rate | 0.4V/µs |
| Gain Bandwidth Product | 30 kHz |
| Current - Input Bias | 28 µA |
| Voltage - Input Offset | 1 µV |
| Current - Supply | 65µA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 26 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-70-6 |
| Base Product Number | INA214 |
Features of INA214AQDCKRQ1
• AEC-Q100 qualified for automotive applications:
– Temperature grade 1: –40°C to +125°C, TA
• Functional Safety-Capable
– Documentation available to aid functional safety system design
• Wide common-mode range: –0.3 V to 26 V
• Offset voltage: 100 µV (maximum)
(enables shunt drops of 10-mV full-scale)
• Accuracy:
– Gain error:
– 1% (max over temperature, versions A, B)
– 0.5% (version C)
– Offset drift: 0.5-µV/°C (maximum)
– Gain drift: 10-ppm/°C (maximum)
• Choice of gain:
– INA210-Q1: 200 V/V
– INA211-Q1: 500 V/V
– INA212-Q1: 1000 V/V
– INA213-Q1: 50 V/V
– INA214-Q1: 100 V/V
– INA215-Q1: 75 V/V
• Quiescent current: 100 µA (maximum)
• Package: 6-pin SC70
Applications of INA214AQDCKRQ1
• Body control module
• Valve control
• Motor control
• Electronic stability control
• Wireless charging transmitters
Environmental & Export Classifications of INA214AQDCKRQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
