LMK00304SQ/NOPB Transistor Ic Chip Ic Clk Buffer 3:5 3.1ghz 32wqfn
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LMK00304SQ/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Type: | Fanout Buffer (Distribution), Multiplexer, Translator |
|---|---|---|---|
| Number Of Circuits: | 1 | Ratio - Input:Output: | 3:05 |
| Differential - Input:Output: | Yes/Yes | Input: | CML, HCSL, HSTL, LVDS, LVPECL, SSTL, Crystal |
| Output: | HCSL, LVCMOS, LVDS, LVPECL | Frequency - Max: | 3.1 GHz |
Product Description

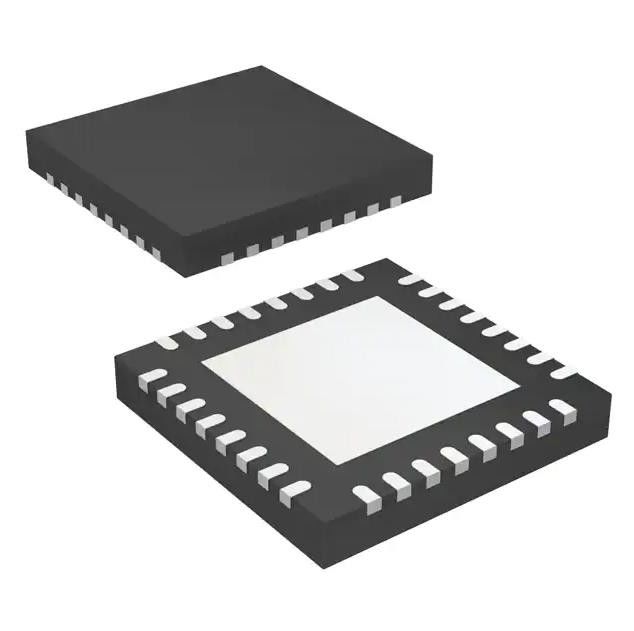

LMK00304SQ/NOPB Transistor Ic Chip Ic Clk Buffer 3:5 3.1ghz 32wqfn
Clock Fanout Buffer (Distribution), Multiplexer, Translator IC 3:5 3.1 GHz 32-WFQFN Exposed Pad
Specifications of LMK00304SQ/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Clock/Timing | |
| Clock Buffers, Drivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Type | Fanout Buffer (Distribution), Multiplexer, Translator |
| Number of Circuits | 1 |
| Ratio - Input:Output | 3:05 |
| Differential - Input:Output | Yes/Yes |
| Input | CML, HCSL, HSTL, LVDS, LVPECL, SSTL, Crystal |
| Output | HCSL, LVCMOS, LVDS, LVPECL |
| Frequency - Max | 3.1 GHz |
| Voltage - Supply | 3.15V ~ 3.45V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-WQFN (5x5) |
| Base Product Number | LMK00304 |
Features of LMK00304SQ/NOPB
3:1 Input Multiplexer
– Two Universal Inputs Operate up to 3.1 GHz and Accept LVPECL, LVDS, CML, SSTL, HSTL, HCSL, or Single-Ended Clocks
– One Crystal Input Accepts a 10-MHz to 40- MHz Crystal or Single-Ended Clock
• Two Banks With 2 Differential Outputs Each
– LVPECL, LVDS, HCSL, or Hi-Z (Selectable)
– LVPECL Additive Jitter with LMK03806 Clock Source at 156.25 MHz:
– 20 fs RMS (10 kHz to 1 MHz)
– 51 fs RMS (12 kHz to 20 MHz)
• High PSRR: –65 / –76 dBc (LVPECL/LVDS) at 156.25 MHz
• LVCMOS Output with Synchronous Enable Input
• Pin-Controlled Configuration
• VCC Core Supply: 3.3 V 5%
• 3 Independent VCCO Output Supplies: 3.3 V/2.5 V 5%
• Industrial Temperature Range: –40°C to +85°C
• 32-lead WQFN (5 mm × 5 mm)
Applications of LMK00304SQ/NOPB
• Clock Distribution and Level Translation for ADCs, DACs, Multi-Gigabit Ethernet, XAUI, Fibre Channel, SATA/SAS, SONET/SDH, CPRI, HighFrequency Backplanes
• Switches, Routers, Line Cards, Timing Cards
• Servers, Computing, PCI Express (PCIe 3.0)
• Remote Radio Units and Baseband Units
Environmental & Export Classifications of LMK00304SQ/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
