LM5118Q1MHX NOPB Transistor IC Chip Reg CTRLR BCK BCK-BST 20TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM5118Q1MHX/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Output Type: | Transistor Driver |
|---|---|---|---|
| Function: | Step-Down, Step-Up/Step-Down | Output Configuration: | Positive |
| Topology: | Buck, Buck-Boost | Number Of Outputs: | 1 |
| Output Phases: | 1 | Voltage - Supply (Vcc/Vdd): | 3V ~ 75V |
| High Light: | LM5118Q1MHX NOPB Transistor IC,NOPB Transistor IC Chip,20TSSOP Transistor IC Chip |
||
Product Description

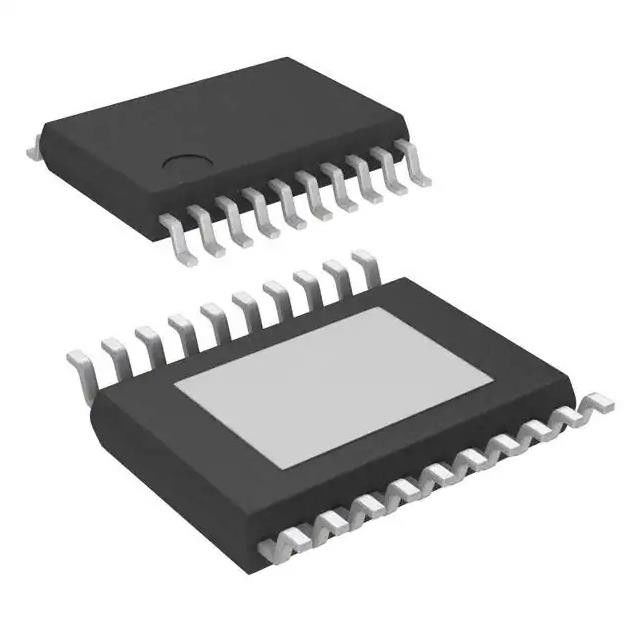

LM5118Q1MHX/NOPB Transistor Ic Chip Reg Ctrlr Bck/Bck-Bst 20tssop
Buck, Buck-Boost Regulator Positive Output Step-Down, Step-Up/Step-Down DC-DC Controller IC 20-HTSSOP
Specifications of LM5118Q1MHX/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| DC DC Switching Controllers | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck, Buck-Boost |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 75V |
| Frequency - Switching | 200kHz, 515kHz |
| Duty Cycle (Max) | 80% |
| Synchronous Rectifier | No |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Ramp, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 20-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-HTSSOP |
| Base Product Number | LM5118 |
Features of LM5118Q1MHX/NOPB
• Ultra-Wide Input Voltage Range From 3 V to 75 V
• Emulated Peak Current Mode Control
• Smooth Transition Between Step-Down and StepUp Modes
• Switching Frequency Programmable to 500 KHz
• Oscillator Synchronization Capability
• Internal High Voltage Bias Regulator
• Integrated High and Low-Side Gate Drivers
• Programmable Soft-Start Time
• Ultra-Low Shutdown Current
• Enable Input Wide Bandwidth Error Amplifier
• 1.5% Feedback Reference Accuracy
• Thermal Shutdown
• Package: 20-Pin HTSSOP (Exposed Pad)
• Create a Custom Design Using the LM5118 With the WEBENCH® Power Designer
Applications of LM5118Q1MHX/NOPB
• Industrial Buck-Boost Supplies
Environmental & Export Classifications of LM5118Q1MHX/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
