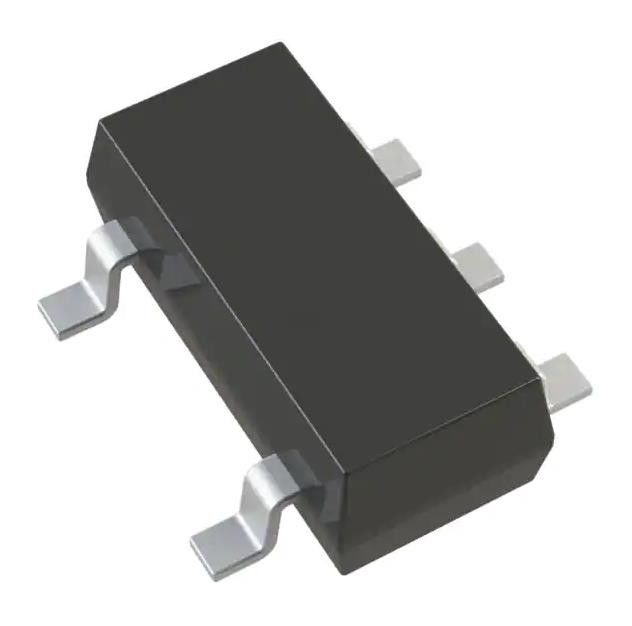

TSOT23-5 Transistor IC Chip Reg Multi CONFG ADJ Switching Regulator IC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LT1617ES5#TRPBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Function: | Step-Up, Step-Up/Step-Down |
|---|---|---|---|
| Output Configuration: | Negative | Topology: | Boost, Cuk, Charge Pump |
| Output Type: | Adjustable | Number Of Outputs: | 1 |
| Voltage - Input (Min): | 1.2V | Voltage - Input (Max): | 15V |
| High Light: | TSOT23-5 Transistor Ic Chip,ADJ Switching Regulator IC,Reg Multi CONFG Transistor IC Chip |
||
Product Description
LT1617ES5#TRPBF Transistor Ic Chip Reg Multi Confg Adj Tsot23-5
Boost, Cuk, Charge Pump Switching Regulator IC Negative Adjustable -1.2V 1 Output 300mA (Switch) SOT-23-5 Thin, TSOT-23-5
Specifications of LT1617ES5#TRPBF
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Negative |
| Topology | Boost, Cuk, Charge Pump |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 1.2V |
| Voltage - Input (Max) | 15V |
| Voltage - Output (Min/Fixed) | -1.2V |
| Voltage - Output (Max) | -34V |
| Current - Output | 300mA (Switch) |
| Frequency - Switching | - |
| Synchronous Rectifier | No |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| Base Product Number | LT1617 |
Features of LT1617ES5#TRPBF
■ Low Quiescent Current: 20µA in Active Mode <1µA in Shutdown Mode
■ Operates with VIN as Low as 1V
■ Low VCESAT Switch: 250mV at 300mA
■ Uses Small Surface Mount Components
■ High Output Voltage: Up to –34V
■ Tiny 5-Lead SOT-23 Package
Applications of LT1617ES5#TRPBF
■ LCD Bias
■ Handheld Computers
■ Battery Backup
■ Digital Cameras
Environmental & Export Classifications of LT1617ES5#TRPBF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
