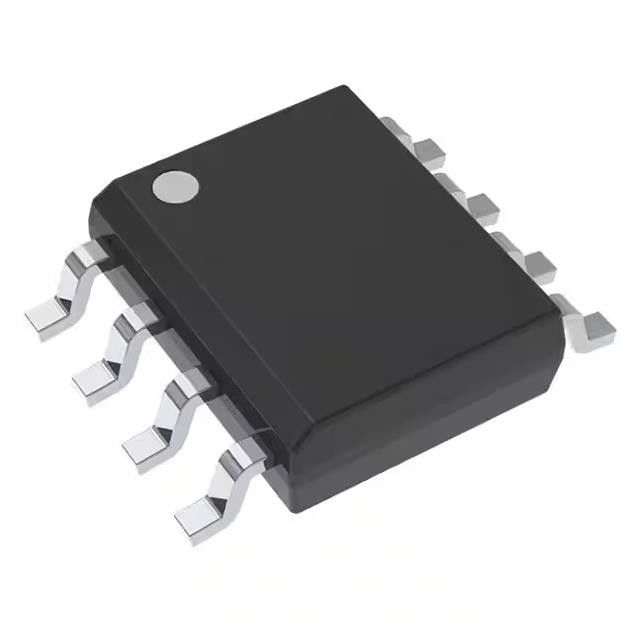

XTR115UA 2K5 Integrated Circuit Chip 8SOIC Current Loop Transmitter IC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | XTR115UA/2K5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Digi-Key Programmable: | Not Verified |
|---|---|---|---|
| Type: | Current Transmitter | Input Type: | Voltage |
| Output Type: | Voltage | Current - Supply: | 20 MA |
| Operating Temperature: | -40°C ~ 85°C | Mounting Type: | Surface Mount |
| High Light: | XTR115UA 2K5 Integrated Circuit Chip,XTR115UA 2K5 8SOIC,8SOIC Current Loop Transmitter IC |
||
Product Description
XTR115UA/2K5 Integrated Circuit Chip Current Transmitter 8soic
296-39548-2-ND
Specifications of XTR115UA/2K5
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Sensor and Detector Interfaces | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Type | Current Transmitter |
| Input Type | Voltage |
| Output Type | Voltage |
| Current - Supply | 20 mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | XTR115 |
Features of XTR115UA/2K5
● LOW QUIESCENT CURRENT: 200µA
● 5V REGULATOR FOR EXTERNAL CIRCUITS
● VREF FOR SENSOR EXCITATION: XTR115: 2.5V XTR116: 4.096V
● LOW SPAN ERROR: 0.05%
● LOW NONLINEARITY ERROR: 0.003%
● WIDE LOOP SUPPLY RANGE: 7.5V to 36V
● SO-8 PACKAGE
Applications of XTR115UA/2K5
● 2-WIRE, 4-20mA CURRENT LOOP TRANSMITTER
● SMART TRANSMITTER
● INDUSTRIAL PROCESS CONTROL
● TEST SYSTEMS
● COMPATIBLE WITH HART MODEM
● CURRENT AMPLIFIER
● VOLTAGE-TO-CURRENT AMPLIFIER
Environmental & Export Classifications of XTR115UA/2K5
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
