VNH5019ATR-E Transistor IC Chip Multipwrso 30 MTR DRV 5.5V-24V
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | VNH5019ATR-E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Applications: | Automotive | Current - Output: | 30A |
|---|---|---|---|
| Voltage - Supply: | 5.5V ~ 24V | Voltage - Load: | 5.5V ~ 24V |
| Operating Temperature: | -40°C ~ 150°C (TJ) | Mounting Type: | Surface Mount |
| Package / Case: | 30-PowerSOP (0.630", 16.00mm Width) | Supplier Device Package: | MultiPowerSO-30 |
| High Light: | VNH5019ATR-E Transistor IC,IC Chip Multipwrso 30,5.5V Transistor IC Chip |
||
Product Description

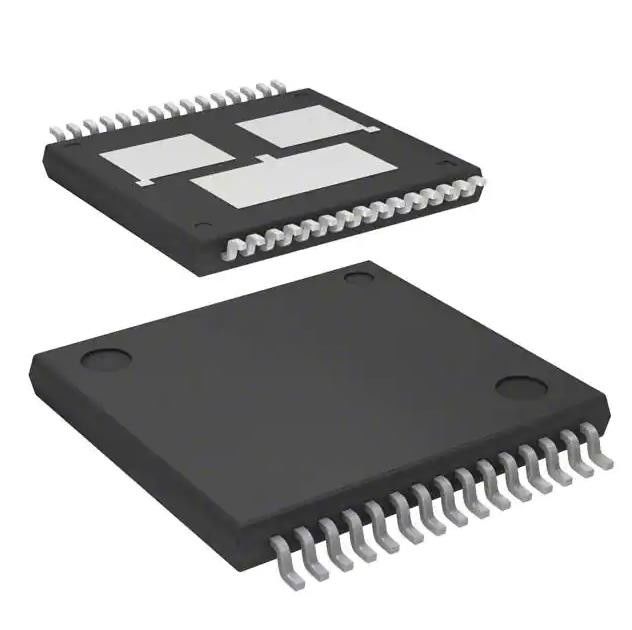

VNH5019ATR-E Transistor Ic Chip Mtr Drv 5.5-24v Multipwrso-30
Motor Driver Power MOSFET Parallel, PWM MultiPowerSO-30
Specifications of VNH5019ATR-E
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Motor Drivers, Controllers | |
| Mfr | STMicroelectronics |
| Series | ECOPACK®, VIPower™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) |
| Interface | Parallel, PWM |
| Technology | Power MOSFET |
| Step Resolution | - |
| Applications | Automotive |
| Current - Output | 30A |
| Voltage - Supply | 5.5V ~ 24V |
| Voltage - Load | 5.5V ~ 24V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 30-PowerSOP (0.630", 16.00mm Width) |
| Supplier Device Package | MultiPowerSO-30 |
| Base Product Number | VNH5019 |
Features of VNH5019ATR-E
• AEC-Q100 qualified
• ECOPACK®: lead free and RoHS compliant
• Output current: 30 A
• 3 V CMOS compatible inputs
• Undervoltage and overvoltage shutdown
• Cross-conduction protection
• Current limitation
• Very low standby power consumption
• PWM operation up to 20 kHz
• Protection against:
• Loss of ground and loss of VCC
• Current sense output proportional to motor current
• Charge pump output for reverse polarity protection
• Output protected against short to ground and short to VCC
Applications of VNH5019ATR-E
The VHN5019A-E is a full bridge motor driver intended for a wide range of automotive applications. The device incorporates a dualmonolithic high-side drivers and two low-side switches. The high-side driver switch is designed using STMicroelectronics’ well known and proven
proprietary VIPower® M0 technology that allows to efficiently integrate on the same die a true Power MOSFET with an intelligent signal/protection circuit.
Environmental & Export Classifications of VNH5019ATR-E
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
Want to Know more details about this product
