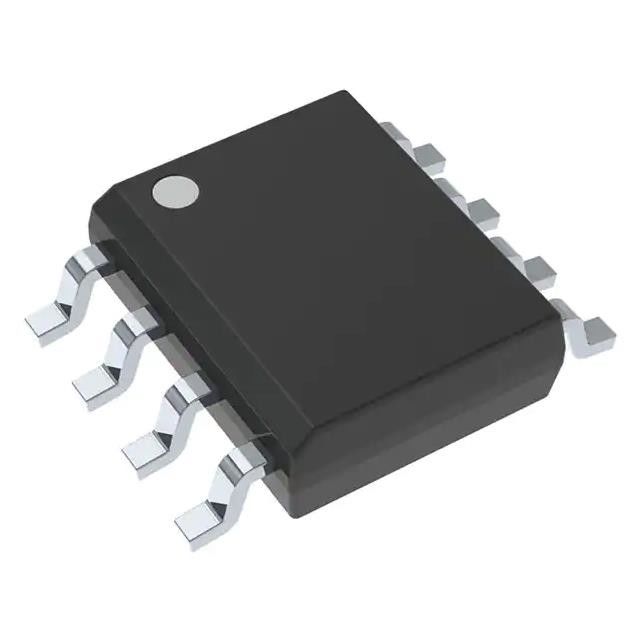

TCAN1051VDRQ1 Integrated Circuit IC Chip Transceiver Half 1/1 8SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TCAN1051VDRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Type: | Transceiver |
|---|---|---|---|
| Protocol: | CANbus | Number Of Drivers/Receivers: | 1/1 |
| Duplex: | Half | Receiver Hysteresis: | 120 MV |
| Data Rate: | 2Mbps | Voltage - Supply: | 4.5V ~ 5.5V |
| High Light: | TCAN1051VDRQ1,8SOIC IC Chip Transceiver,TCAN1051VDRQ1 Circuit IC |
||
Product Description
TCAN1051VDRQ1 Integrated Circuit IC Chip Transceiver Half 1/1 8soic
1/1 Transceiver Half CANbus 8-SOIC
Specifications of TCAN1051VDRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Type | Transceiver |
| Protocol | CANbus |
| Number of Drivers/Receivers | 1/1 |
| Duplex | Half |
| Receiver Hysteresis | 120 mV |
| Data Rate | 2Mbps |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | TCAN1051 |
Features of TCAN1051VDRQ1
• AEC Q100: Qualified for automotive applications
– Temperature grade 1: -40°C to 125°C, TA
– HBM classification level: ±16 kV
– CDM classification level ±1500 V
• Meets the ISO 11898-2:2016 and
ISO 11898-5:2007 physical layer standards
• Functional Safety-Capable
– Documentation available to aid functional safety system design
• 'Turbo' CAN:
– All devices support classic CAN and 2 MbpsCAN FD (flexible data rate) and "G" options support 5 Mbps
– Short and symmetrical propagation delay timesand fast loop times for enhanced timing margin
– Higher data rates in loaded CAN networks
• EMC performance: supports SAE J2962-2 and IEC62228-3 (up to 500 kbps) without common modechoke
• I/O Voltage range supports 3.3 V and 5 V MCUs
• Ideal passive behavior when unpowered
– Bus and logic terminals are high impedance (noload)
– Power up/down with glitch free operation onbus and RXD output
• Protection features
– IEC ESD protection up to ±15 kV
– Bus Fault protection: ±58 V (non-H variants)and ±70 V (H variants)
– Undervoltage protection on VCC and VIO (Vvariants only) supply terminals
– Driver dominant time out (TXD DTO) - Datarates down to 10 kbps
– Thermal shutdown protection (TSD)
• Receiver common mode input voltage: ±30 V
• Typical loop delay: 110 ns
• Junction temperatures from –55°C to 150°C
• Available in SOIC(8) package and leadlessVSON(8) Package (3.0 mm x 3.0 mm) with improved automated optical inspection (AOI)capability
Applications of TCAN1051VDRQ1
• Automotive and Transportation
• All devices support highly loaded CAN networks
• Heavy machinery ISOBUS applications – ISO 11783
Environmental & Export Classifications of TCAN1051VDRQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
