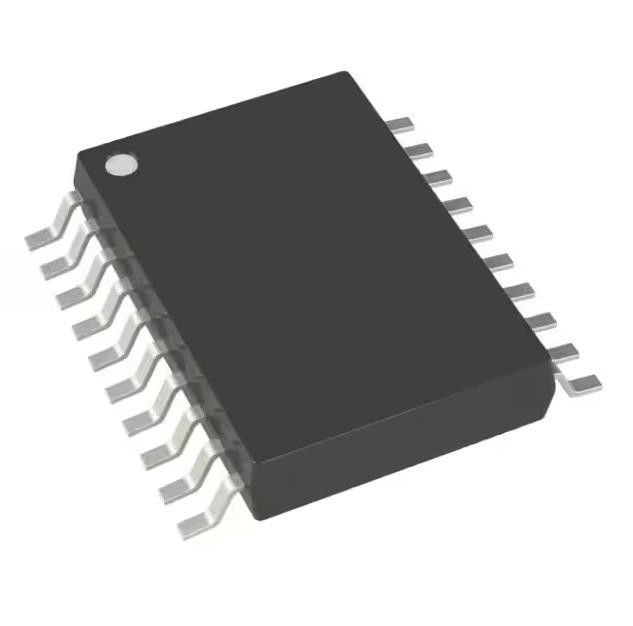

AD9834CRUZ DDS 75MHZ 10BIT 20TSSOP Integrated Circuit Chips
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | AD9834CRUZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Tube | Product Status: | Active |
|---|---|---|---|
| Resolution (Bits): | 10 B | Master Fclk: | 75 MHz |
| Tuning Word Width (Bits): | 28 B | Voltage - Supply: | 2.3V ~ 5.5V |
| Operating Temperature: | -40°C ~ 105°C | Mfr: | Surface Mount |
| High Light: | AD9834CRUZ DDS 75MHZ,AD9834CRUZ 10BIT,20TSSOP Integrated Circuit Chips |
||
Product Description
AD9834CRUZ Integrated Circuit IC Chip Dds 75mhz 10bit 20tssop
Direct Digital Synthesis IC 10 b 75 MHz 28 b Tuning 20-TSSOP
Specifications of AD9834CRUZ
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Direct Digital Synthesis (DDS) | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tube |
| Product Status | Active |
| Resolution (Bits) | 10 b |
| Master fclk | 75 MHz |
| Tuning Word Width (Bits) | 28 b |
| Voltage - Supply | 2.3V ~ 5.5V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
| Base Product Number | AD9834 |
Features of AD9834CRUZ
• Narrow-band SFDR >72 dB 2.3 V to 5.5 V power supply
• Output frequency up to 37.5 MHz
• Sine output/triangular output
• On-board comparator 3-wire SPI® interface
• Extended temperature range: −40°C to +105°C Power-down option
• 20 mW power consumption at 3 V
• 20-lead TSSOP
Applications of AD9834CRUZ
• Frequency stimulus/waveform generation
• Frequency phase tuning and modulation
• Low power RF/communications systems
• Liquid and gas flow measurement
• Sensory applications: proximity, motion, and defect detection
• Test and medical equipment
Environmental & Export Classifications of AD9834CRUZ
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
