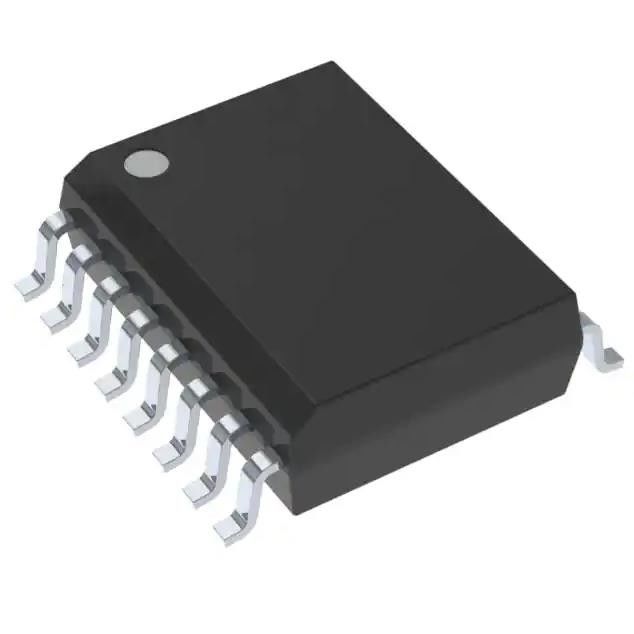

16SOIC ISO3086TDWR Transistor IC Chip Transceiver ISOL Surface Mount
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ISO3086TDWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Digi-Key Programmable: | Not Verified |
|---|---|---|---|
| Type: | Transceiver, Isolated | Mounting Type: | Surface Mount |
| Package / Case: | 16-SOIC (0.295", 7.50mm Width) | Supplier Device Package: | 16-SOIC |
| Base Product Number: | ISO3086 | Mfr: | Texas Instruments |
| High Light: | 16SOIC ISO3086TDWR,ISO3086TDWR Transistor IC Chip,16SOIC Transistor IC Chip |
||
Product Description
ISO3086TDWR Integrated Circuit IC Chip Transceiver Isol 16soic
Transceiver, Isolated 16-SOIC
Specifications of ISO3086TDWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Specialized ICs | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Type | Transceiver, Isolated |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | ISO3086 |
Features of ISO3086TDWR
• Meets or Exceeds TIA/EIA-485-A
• Signaling Rate up to 20 Mbps
• Signaling Rate up to 20 Mbps
• Signaling Rate up to 20 Mbps
• Typical Efficiency 60% (ILOAD 100 mA) - see SLUU469
• Typical Efficiency 60% (ILOAD 100 mA) - see
• 50-kV/µs Typical Transient Immunity
• Fail-safe Receiver for Bus Open, Short, Idle
• Logic Inputs are 5-V Tolerant
• Bus-Pin ESD Protection
– 11-kV HBM Between Bus-Pins and GND2
– 6-kV HBM Between Bus-Pins and GND1
• Safety and Regulatory Approvals
– 4242 V Basic Insulation per DIN V VDE V 0884-10 and DIN EN 61010-1.
– 2500 VRMS Isolation for 1 minute per UL 1577
– CSA Component Acceptance Notice 5A, IEC60950-1 and IEC 61010-1 Standards
Applications of ISO3086TDWR
• Isolated RS-485/RS-422 Interfaces
• Factory Automation
• Motor/Motion Control
• HVAC and Building Automation Networks
• Networked Security Stations
Environmental & Export Classifications of ISO3086TDWR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
