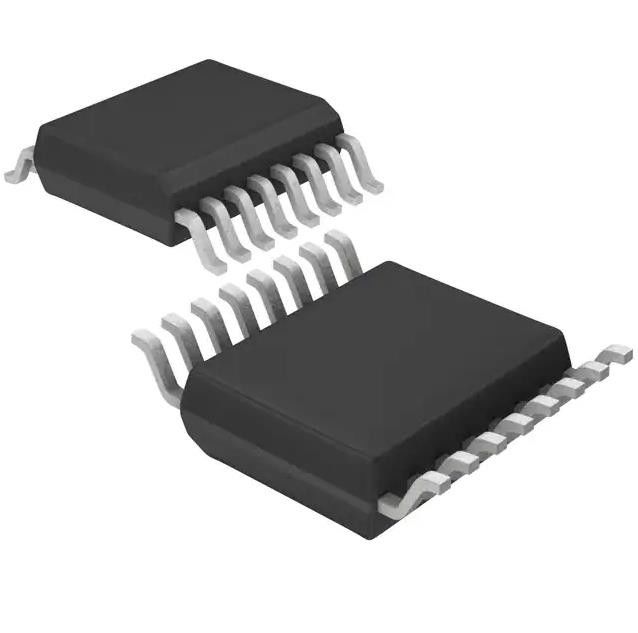

2500VRMS ISO7140CCDBQR Transistor IC Chip DGTL ISO 4CH GP 16SSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ISO7140CCDBQR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Isolated Powerate Propagation Delay TpLH / TpHL (Max): | No | Number Of Channels: | 4 |
|---|---|---|---|
| Inputs - Side 1/Side 2: | 4/0 | Channel Type: | Unidirectional |
| Voltage - Isolation: | 2500Vrms | Common Mode Transient Immunity (Min): | 25kV/µs |
| Data Rate: | 50Mbps | Propagation Delay TpLH / TpHL (Max): | 35ns, 35ns |
| High Light: | 2500VRMS ISO7140CCDBQR,ISO7140CCDBQR Transistor IC,4CH GP 16SSOP Transistor IC |
||
Product Description
ISO7140CCDBQR Transistor Ic Chip Dgtl Iso 2500vrms 4ch Gp 16ssop
General Purpose Digital Isolator 2500Vrms 4 Channel 50Mbps 25kV/µs CMTI 16-SSOP (0.154", 3.90mm Width)
Specifications of ISO7140CCDBQR
| TYPE | DESCRIPTION |
| Category | Isolators |
| Digital Isolators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Technology | Capacitive Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 4 |
| Inputs - Side 1/Side 2 | 4/0 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Data Rate | 50Mbps |
| Propagation Delay tpLH / tpHL (Max) | 35ns, 35ns |
| Pulse Width Distortion (Max) | 3ns |
| Rise / Fall Time (Typ) | 2ns, 2ns |
| Voltage - Supply | 2.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SSOP |
| Base Product Number | ISO7140 |
Features of ISO7140CCDBQR
• Maximum Signaling Rate: 50 Mbps (With 5-V Supplies)
• Robust Design With Integrated Noise Filter
• Default Output Low Option (Suffix F)
• Low Power Consumption, Typical ICC per Channel (With 3.3-V Supplies):
– ISO7131: 1.5 mA at 1 Mbps, 2.6 mA at 25 Mbps
– ISO7140: 1 mA at 1 Mbps, 2.3 mA at 25 Mbps
– ISO7141: 1.3 mA at 1 Mbps, 2.6 mA at 25 Mbps
• Low Propagation Delay: 23-ns Typical (3.3-V Supplies)
• Wide Temperature Range: –40°C to 125°C
• 50-kV/µs Transient Immunity, Typical
• Long Life With SiO2 Isolation Barrier
• Operates from 2.7-V, 3.3-V, and 5-V Supply and Logic Levels
• Small QSOP-16 Package
• Safety and Regulatory Approvals
– 2500-VRMS Isolation for 1 minute per UL 1577
– 4242-VPK Isolation per DIN V VDE V 0884-10
(VDE V 0884-10):2006-12, 566 VPK Working Voltage
– CSA Component Acceptance Notice 5A, IEC 60950-1 and IEC 61010-1 End Equipment Standards
– CQC Certification per GB 4943.1-2011
Applications of ISO7140CCDBQR
• General-Purpose Isolation
– Industrial Fieldbus
– Profibus
– Modbus™
– DeviceNet Data Buses
– RS-232, RS-485
– Serial Peripheral Interface
Environmental & Export Classifications of ISO7140CCDBQR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
