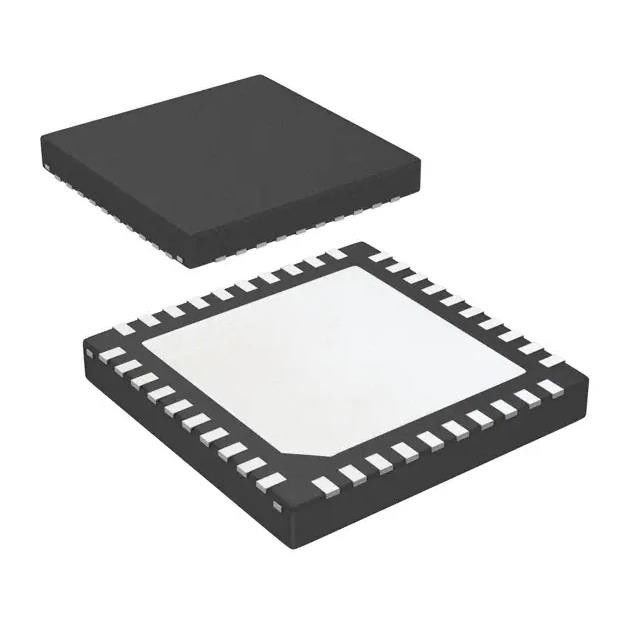

40WQFN LMH1983SQ NOPB Integrated Circuit Chip Video Clock Generator
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LMH1983SQ/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Function: | Generator |
|---|---|---|---|
| Applications: | Professional Video | Standards: | NTSC, PAL |
| Control Interface: | I²C | Voltage - Supply: | 3.3V ~ 3.6V |
| Mounting Type: | Surface Mount | Package / Case: | 40-WFQFN Exposed Pad |
| High Light: | LMH1983SQ NOPB,LMH1983SQ Integrated Circuit Chip,40WQFN LMH1983SQ |
||
Product Description
LMH1983SQ/NOPB Integrated Circuit Chip Video Clock Generator 40wqfn
Video Generator IC I²C NTSC, PAL 40-WQFN (6x6) Package
Specifications of LMH1983SQ/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Video Processing | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Function | Generator |
| Applications | Professional Video |
| Standards | NTSC, PAL |
| Control Interface | I²C |
| Voltage - Supply | 3.3V ~ 3.6V |
| Mounting Type | Surface Mount |
| Package / Case | 40-WFQFN Exposed Pad |
| Supplier Device Package | 40-WQFN (6x6) |
| Base Product Number | LMH1983 |
Features of LMH1983SQ/NOPB
• Four PLLs for Simultaneous A/V Clock Generation
– PLL1: 27 or 13.5 MHz
– PLL2: 148.5 or 74.25 MHz
– PLL3: 148.5/1.001 or 74.25/1.001 MHz
– PLL4: 98.304 MHz / 2 X (X = 0 to 15)
• 3 x 2 Video Clock Crosspoint
• Flexible PLL Bandwidth to Optimize Jitter Performance and Lock Time
• Soft Resynchronization to New Reference
• Digital Holdover or Free-run on Loss of Reference
• Status Flags for Loss of Reference and Loss of PLL Lock
• 3.3 V Single Supply Operation
• I 2C Interface with Address Select Pin (3 States)
Applications of LMH1983SQ/NOPB
• Triple Rate (3G/HD/SD) SDI SerDes
• FPGA Reference Clock Generation/Cleaning
• Audio Embed or De-embed
• Video Cameras
• Frame Synchronizers (Genlock, DARS)
• A-D or D-A Conversion, Editing, Processing Cards
• Keyers and Logo Inserters
• Format or Standards Converters
• Video Displays and Projectors
• A/V Test and Measurement Equipment
Environmental & Export Classifications of LMH1983SQ/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
