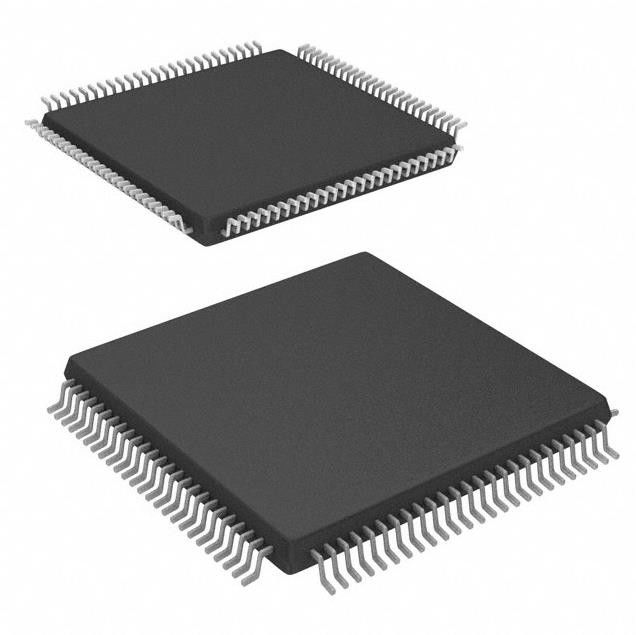

MCU 32BIT 1MB FLASH 100TQFP Transistor IC Chip ATSAME54N20A-AUT
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ATSAME54N20A-AUT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Core Processor: | ARM® Cortex®-M4F |
|---|---|---|---|
| Core Size: | 32-Bit Single-Core | Speed: | 120MHz |
| Number Of I/O: | 81 | Program Memory Size: | 1MB (1M X 8) |
| Program Memory Type: | FLASH | RAM Size: | 256K X 8 |
| High Light: | ATSAME54N20A-AUT,100TQFP Transistor IC Chip,MCU 32BIT Transistor IC Chip |
||
Product Description
ATSAME54N20A-AUT Integrated Circuit Chip Mcu 32bit 1mb Flash 100tqfp
ARM® Cortex®-M4F SAM E54 Microcontroller IC 32-Bit Single-Core 120MHz 1MB (1M x 8) FLASH 100-TQFP (14x14)
Specifications of ATSAME54N20A-AUT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Microchip Technology |
| Series | SAM E54 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Core Processor | ARM® Cortex®-M4F |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT |
| Number of I/O | 81 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 256K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.63V |
| Data Converters | A/D 28x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 100-TQFP |
| Supplier Device Package | 100-TQFP (14x14) |
| Base Product Number | ATSAME54 |
Features of ATSAME54N20A-AUT
Operating Conditions:
• 1.71V to 3.63V, -40°C to +125°C, DC to 100 MHz
• 1.71V to 3.63V, -40°C to +105°C, DC to 120 MHz
• 1.71V to 3.63V, -40°C to +85°C, DC to 120 MHz Core: 120 MHz Arm Cortex-M4
• 403 CoreMark® at 120 MHz
• 4 KB combined instruction cache and data cache
• 8-Zone Memory Protection Unit (MPU)
• Thumb®-2 instruction set
• Embedded Trace Module (ETM) with instruction trace stream
• Core Sight Embedded Trace Buffer (ETB)
• Trace Port Interface Unit (TPIU)
• Floating Point Unit (FPU) Memories
• 1 MB/512 KB/256 KB in-system self-programmable Flash with:
– Error Correction Code (ECC)
– Dual bank with Read-While-Write (RWW) support
– EEPROM hardware emulation (SmartEEPROM)
• 128 KB, 192 KB, 256 KB SRAM main memory
– 64 KB, 96 KB, 128 KB of Error Correction Code (ECC) RAM option
• Up to 4 KB of Tightly Coupled Memory (TCM)
• Up to 8 KB additional SRAM
– Can be retained in backup mode
• Eight 32-bit backup registers System
• Power-on Reset (POR) and Brown-out detection (BOD)
• Internal and external clock options
• External Interrupt Controller (EIC)
• 16 external interrupts
• One non-maskable interrupt
• Two-pin Serial Wire Debug (SWD) programming, test, and debugging interface Power Supply
• Idle, Standby, Hibernate, Backup, and Off sleep modes
• SleepWalking peripherals
• Battery backup support
• Embedded Buck/LDO regulator supporting on-the-fly selection
Cryptography of ATSAME54N20A-AUT
• One Advanced Encryption System (AES) with 256-bit key length and up to 2 MB/s
data rate
– Five confidential modes of operation (ECB, CBC, CFB, OFB, CTR)
– Supports counter with CBC-MAC mode
– Galois Counter Mode (GCM)
• True Random Number Generator (TRNG)
• Public Key Cryptography Controller (PUKCC) and associated Classical Public Key
Cryptography Library
(PUKCL)
– RSA, DSA
– Elliptic Curves Cryptography (ECC) ECC GF(2n), ECC GF(p)
• Integrity Check Module (ICM) based on Secure Hash Algorithm (SHA1, SHA224,
SHA256), DMA assisted
Environmental & Export Classifications of ATSAME54N20A-AUT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 5A992C |
| HTSUS | 8542.31.0001 |
