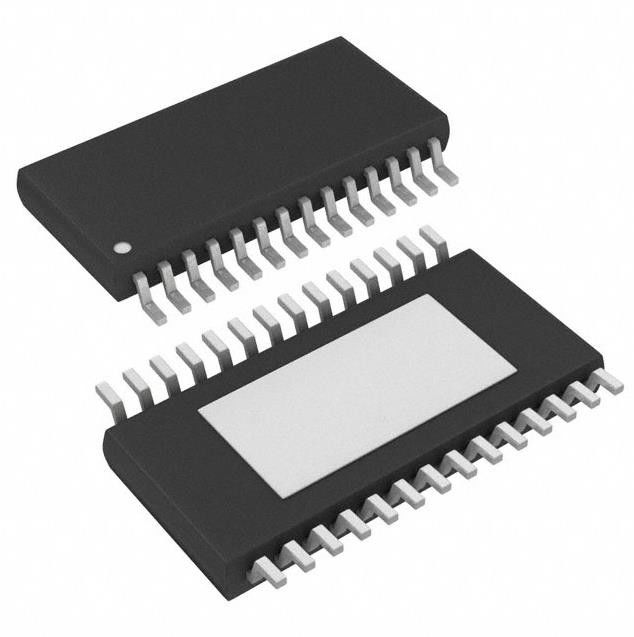

LT3840HFE#TRPBF Integrated Circuit Chip Reg Ctrlr Buck 28tssop
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LT3840HFE#TRPBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Output Type: | Transistor Driver |
|---|---|---|---|
| Function: | Step-Down | Output Configuration: | Positive Or Negative |
| Topology: | Buck | Number Of Outputs: | 1 |
| Output Phases: | 1 | Voltage - Supply (Vcc/Vdd): | 2.5V ~ 60V |
Product Description
RX8900CE Integrated Circuit Chip Rtc Clk/Calendar I2c 10smd
Real Time Clock (RTC) IC Clock/Calendar I²C 10-SMD, No Lead
Specifications of RX8900CE
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| DC DC Switching Controllers | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive or Negative |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 2.5V ~ 60V |
| Frequency - Switching | 50kHz ~ 1MHz |
| Duty Cycle (Max) | 99% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Power Good, Soft Start, Tracking |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 28-TSSOP-EP |
| Base Product Number | LT3840 |
Features of RX8900CE
• Wide Input Range: 2.5V to 60V
• Integrated Buck-Boost Supply for 7.5V MOSFET Gate Drive
• Programmable Constant-Current Operation with Current Monitor Output
• Low IQ: 75µA, 12VIN to 3.3VOUT
• Selectable Low Output Ripple Burst Mode® Operation
• VOUT Up to 60V
• Adjustable and Synchronizable: 50kHz to 1MHz
• Internal OVLO Protects for Input Transients Up to 80V
• Accurate Input Overvoltage and Undervoltage Threshold
• Programmable Soft-Start with Voltage Tracking
• Power Good and Output OVP
• 28-Lead TSSOP and 38-Lead 4mm × 6mm QFN Packages
Applications of RX8900CE
• Automotive Supplies
• Industrial Systems
• Distributed DC Power Systems
Environmental & Export Classifications of RX8900CE
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
