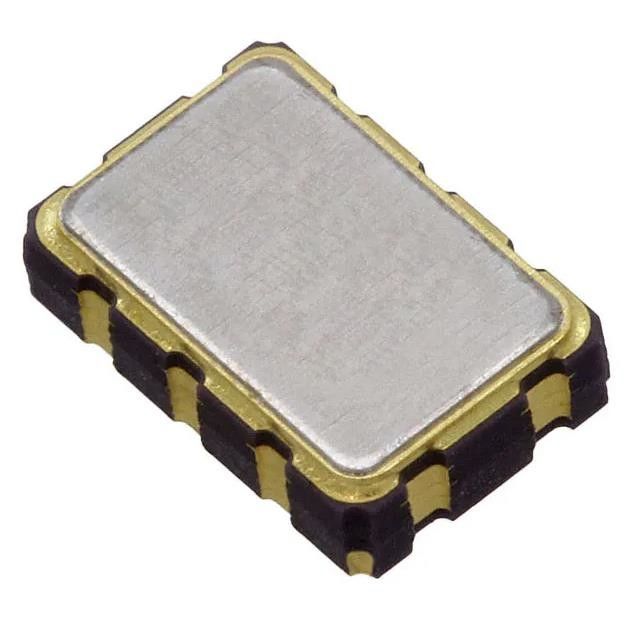

RX8900CE Integrated Circuit IC Chip Rtc Clk/Calendar I2c 10smd
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | RX8900CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Alarm | Product Status: | Active |
|---|---|---|---|
| Digi-Key Programmable: | Not Verified | Type: | Clock/Calendar |
| Voltage - Supply: | 2.5V ~ 5.5V | Time Format: | HH:MM:SS (24 Hr) |
| Date Format: | YY-MM-DD-dd | Interface: | I²C |
Product Description
RX8900CE Integrated Circuit IC Chip Rtc Clk/Calendar I2c 10smd
Real Time Clock (RTC) IC Clock/Calendar I²C 10-SMD, No Lead
Specifications of RX8900CE
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Clock/Timing | |
| Real Time Clocks | |
| Mfr | EPSON |
| Series | RX8900CE |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Type | Clock/Calendar |
| Features | Alarm |
| Memory Size | - |
| Time Format | HH:MM:SS (24 hr) |
| Date Format | YY-MM-DD-dd |
| Interface | I²C |
| Voltage - Supply | 2.5V ~ 5.5V |
| Voltage - Supply, Battery | 1.6V ~ 5.5V |
| Current - Timekeeping (Max) | 1.4µA ~ 1.5µA @ 3V ~ 5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 10-SMD, No Lead |
| Supplier Device Package | 10-SMD |
Features of RX8900CE
• Built-in frequency adjusted 32.768 kHz crystal unit and DTCXO
• Interface Type :I 2C-Bus
• Interface voltage range :2.5 V to 5.5 V
• Temp. compensated voltage range :2.0 V to 5.5 V
• Timekeeping voltage range :1.6 V to 5.5 V
• Auto power switching function :Automatically switches to backup power
supply by monitoring the VDD voltage
• Interrupt output :Wake up every minute or every second
• Alarm interruption :Day, date, hour, minute
• Auto repeat wakeup timer interruption
Overview of RX8900CE
• Interface type I 2 C-Bus interface Fast-Mode 400 kHz
• High stability
UA: ± 3.4 x 10-6 / -40 ºC to +85 ºC (equiv. to ±9 s of mo. deviation)
UB: ± 5.0 x 10-6 / -40 ºC to +85 ºC (equiv. to ±13 s of mo. deviation)
UC: ± 5.0 x 10-6 / -30 ºC to +70 ºC (equiv. to ±13 s of mo. deviation)
• Auto power switch function
The VDD voltage is monitored and it switches to the backup
power supply by the automatic operation
Backup power supply switching voltage 1.9 V Min.
• Clock output function
Output frequency is selectable from 32.768 kHz, 1024 Hz, 1 Hz
• Wakeup timer function Selectable from 244 µs to 2.8 days (12 bit x 1 ch.) Timer source clock selectable from 1/60 Hz, 1 Hz, 64 Hz, 4096 Hz Auto release after interrupt output from /INT pin at timer completes This operation is auto repeat with a selected cycle, it can be used like a watchdog timer
• Alarm function It is possible program from day to minute
• Temp. sensor function Available readout temperature data from embedded temp sensor
Environmental & Export Classifications of RX8900CE
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
