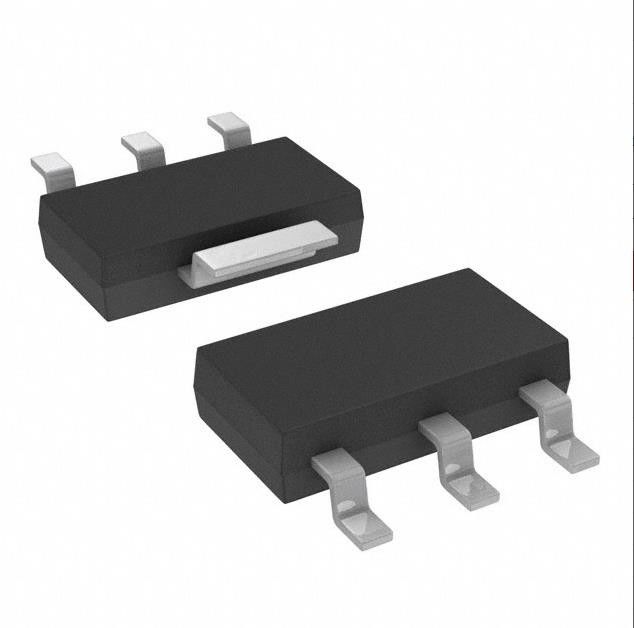

BSP452HUMA1 Integrated Circuit IC Chip Pwr Swtch N-Chan 1:1 Sot223-4
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | BSP452HUMA1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Configuration: | High Side | Output Type: | N-Channel |
|---|---|---|---|
| Interface: | On/Off | Voltage - Load: | 5V ~ 34V |
| Voltage - Supply (Vcc/Vdd): | Not Required | Current - Output (Max): | 700mA |
| Rds On (Typ): | 160mOhm | Input Type: | Non-Inverting |
Product Description
BSP452HUMA1 Integrated Circuit IC Chip Pwr Swtch N-Chan 1:1 Sot223-4
Power Switch/Driver 1:1 N-Channel 700mA PG-SOT223-4
Specifications of BSP452HUMA1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | Infineon Technologies |
| Series | miniPROFET® |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 5V ~ 34V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 700mA |
| Rds On (Typ) | 160mOhm |
| Input Type | Non-Inverting |
| Features | - |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-SOT223-4 |
| Package / Case | TO-261-4, TO-261AA |
| Base Product Number | BSP452 |
Features of BSP452HUMA1
• High-side switch
• Short-circuit protection
• Input protection
• Overtemperature protection with hysteresis
• Overload protection
• Overvoltage protection
• Switching inductive load
• Clamp of negative output voltage with inductive loads
• Undervoltage shutdown
• Maximum current internally limited
• Electrostatic discharge (ESD) protection
• Reverse battery protection1)
• AEC qualified
• Green product (RoHS compliant)
Applications of BSP452HUMA1
• µC compatible power switch for 12 V DC grounded loads
• All types of resistive, inductive and capacitive loads
• Replaces electromechanical relays and discrete circuits
Environmental & Export Classifications of BSP452HUMA1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
