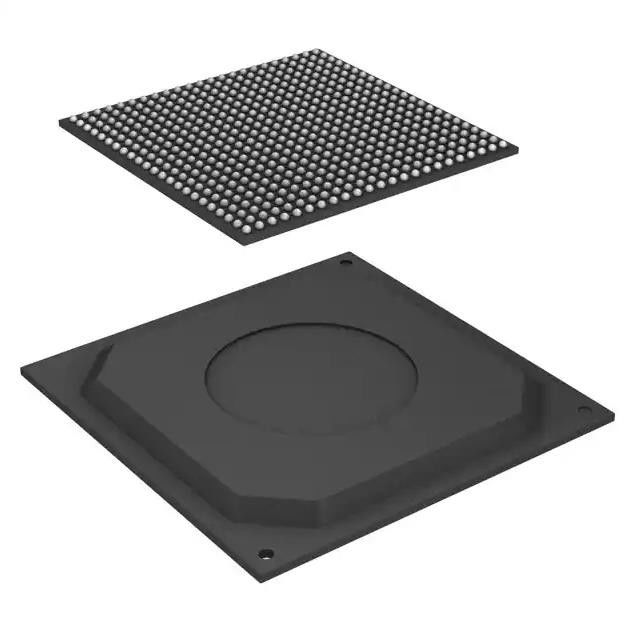

MCIMX537CVV8C Transistor Ic Chip Ic Mpu I.Mx53 800mhz 529fbga
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MCIMX537CVV8C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Series: | I.MX53 | Package: | Tray |
|---|---|---|---|
| Product Status: | Obsolete | Core Processor: | ARM® Cortex®-A8 |
| Number Of Cores/Bus Width: | 1 Core, 32-Bit | Speed: | 800MHz |
| Co-Processors/DSP: | Multimedia; NEON™ SIMD | RAM Controllers: | LPDDR2, DDR2, DDR3 |
Product Description
MCIMX537CVV8C Transistor Ic Chip Ic Mpu I.Mx53 800mhz 529fbga
ARM® Cortex®-A8 Microprocessor IC i.MX53 1 Core, 32-Bit 800MHz 529-FBGA (19x19)
Specifications of MCIMX537CVV8C
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microprocessors | |
| Mfr | NXP USA Inc. |
| Series | i.MX53 |
| Package | Tray |
| Product Status | Obsolete |
| Core Processor | ARM® Cortex®-A8 |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 800MHz |
| Co-Processors/DSP | Multimedia; NEON™ SIMD |
| RAM Controllers | LPDDR2, DDR2, DDR3 |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | Keypad, LCD |
| Ethernet | 10/100Mbps (1) |
| SATA | SATA 1.5Gbps (1) |
| USB | USB 2.0 (2), USB 2.0 + PHY (2) |
| Voltage - I/O | 1.3V, 1.8V, 2.775V, 3.3V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Security Features | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection |
| Mounting Type | Surface Mount |
| Package / Case | 529-FBGA |
| Supplier Device Package | 529-FBGA (19x19) |
| Additional Interfaces | 1-Wire, AC'97, CAN, I²C, I²S, MMC/SD, SAI, SPI, SSI, UART |
| Base Product Number | MCIMX537 |
Features of MCIMX537CVV8C
The i.MX53 multimedia applications processor (AP) is based on the ARM Platform,which has thefollowing features:
• MMU, L1 instruction and L1 data cache
• Unified L2 cache
• Maximum frequency of the core (including Neon, VFPv3 and L1 cache): 800 MHz
• Neon coprocessor (SIMD media processing architecture) and vector floating point(VFP-Lite) coprocessor supporting VFPv3
• TrustZone The memory system consists of the following components:
• Level 1 cache:
— Instruction (32 Kbyte)
— Data (32 Kbyte)
• Level 2 cache:
— Unified instruction and data (256 Kbyte)
• Level 2 (internal) memory:
— Boot ROM, including HAB (64 Kbyte)
— Internal multimedia/shared, fast access RAM (128 Kbyte)
— Secure/non-secure RAM (16 Kbyte)
• External memory interfaces:
— 16/32-bit DDR2-800, LV-DDR2-800 or DDR3-800 up to 2 Gbyte
— 32-bit LPDDR2
— 8/16-bit NAND SLC/MLC Flash, up to 66 MHz, 4/8/14/16-bit ECC
— 8/16-bit NOR Flash, PSRAM, and cellular RAM.
— 32-bit multiplexed mode NOR Flash, PSRAM & cellular RAM.
— 8-bit Asynchronous (DTACK mode) EIM interface.
— All EIM pins are muxed on other interfaces (data with NFC pins). I/O muxing logic selects EIM port, as primary muxing at system boot.
— Samsung OneNAND™ and managed NAND including eMMC up to rev 4.4 (in muxed I/Omode)
The i.MX53 system is built around the following system on chip interfaces:
• 64-bit AMBA AXI v1.0 bus—used by ARM platform, multimedia accelerators (such as VPU, IPU,GPU3D, GPU2D) and the external memory controller (EXTMC) operating at 200 MHz.
• 32-bit AMBA AHB 2.0 bus—used by the rest of the bus master peripherals operating at 133 MHz.
• 32-bit IP bus—peripheral bus used for control (and slow data traffic) of the most system peripheral devices operating at 66 MHz.
Applications of MCIMX537CVV8C
— Three I2S/SSI/AC97 ports, supporting up to 1.4 Mbps, each connected to audio
multiplexer
(AUDMUX) providing four external ports.
— Five UART RS232 ports, up to 4.0 Mbps each. One supports 8-wire, the other four
support
4-wire.
— Two high speed enhanced CSPI (ECSPI) ports plus one CSPI port
— Three I2
C ports, supporting 400 kbps
— Fast Ethernet controller, designed to be compliant with IEEE1588 V1, 10/100
Mbps
— Two controller area network (FlexCAN) interfaces, 1 Mbps each
— Sony Phillips Digital Interface (SPDIF), Rx and Tx
— Key pad port (KPP)
— Two pulse-width modulators (PWM)
— GPIO with interrupt capabilities
Environmental & Export Classifications of MCIMX537CVV8C
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 5A992C |
| HTSUS | 8542.31.0001 |
