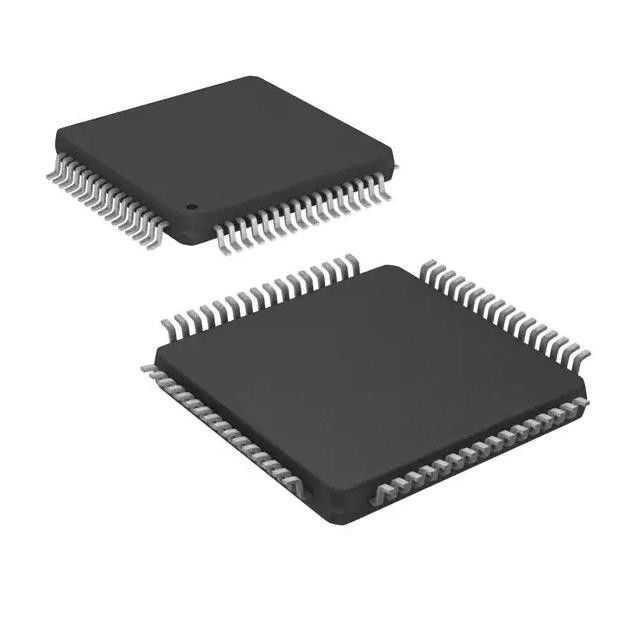

ADS1299IPAGR Integrated Circuit Chip Afe 8 Chan 24bit 64tqfp
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADS1299IPAGR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Number Of Bits: | 24 |
|---|---|---|---|
| Number Of Channels: | 8 | Power (Watts): | 42 MW |
| Voltage - Supply, Analog: | 5V | Voltage - Supply, Digital: | 1.8V ~ 3.6V |
| Mounting Type: | Surface Mount | Package / Case: | 64-TQFP |
Product Description
ADS1299IPAGR T Integrated Circuit Chip Afe 8 Chan 24bit 64tqfp
8 Channel AFE 24 Bit 42 mW 64-TQFP (10x10)
Specifications of ADS1299IPAGR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog Front End (AFE) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Number of Bits | 24 |
| Number of Channels | 8 |
| Power (Watts) | 42 mW |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 1.8V ~ 3.6V |
| Mounting Type | Surface Mount |
| Package / Case | 64-TQFP |
| Supplier Device Package | 64-TQFP (10x10) |
| Base Product Number | ADS1299 |
Features of ADS1299IPAGR
• Up to Eight Low-Noise PGAs and Eight HighResolution Simultaneous-Sampling ADCs
• Input-Referred Noise: 1 μVPP (70-Hz BW)
• Input Bias Current: 300 pA
• Data Rate: 250 SPS to 16 kSPS
• CMRR: –110 dB
• Programmable Gain: 1, 2, 4, 6, 8, 12, or 24
• Unipolar or Bipolar Supplies:
– Analog: 4.75 V to 5.25 V
– Digital: 1.8 V to 3.6 V
• Built-In Bias Drive Amplifier, Lead-Off Detection, Test Signals
• Built-In Oscillator
• Internal or External Reference
• Flexible Power-Down, Standby Mode
• Pin-Compatible with the ADS129x
• SPI-Compatible Serial Interface
• Operating Temperature Range: –40°C to +85°C
Applications of ADS1299IPAGR
• Medical Instrumentation Including:
– Electroencephalogram (EEG) Study
– Fetal Electrocardiography (ECG)
– Sleep Study Monitor
– Bispectral Index (BIS)
– Evoked Audio Potential (EAP)
Environmental & Export Classifications of ADS1299IPAGR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
