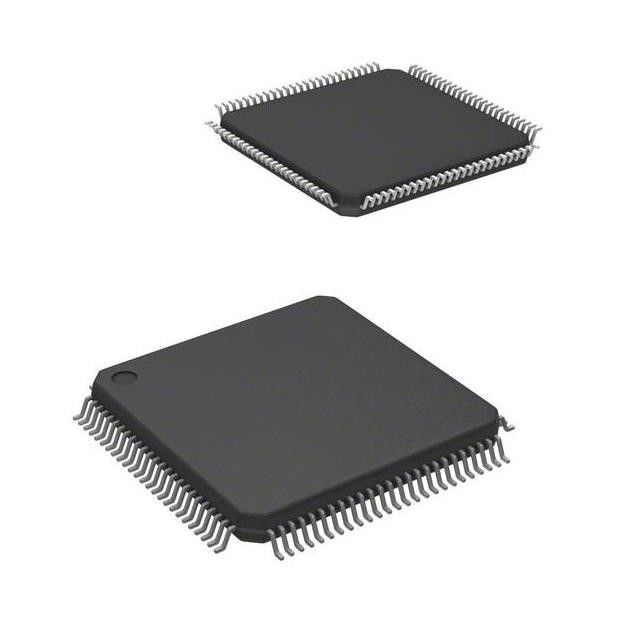

MC56F84789VLL Transistor Ic Chip Ic Mcu 32bit 256kb Flash 100lqfp
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MC56F84789VLL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Mfr: | NXP USA Inc. | Series: | 56F8xxx |
|---|---|---|---|
| Package: | Tray | Product Status: | Active |
| Core Processor: | 56800EX | Core Size: | 32-Bit Single-Core |
| Speed: | 100MHz | Connectivity: | CANbus, I²C, LINbus, SCI, S |
Product Description
MC56F84789VLL Transistor Ic Chip Ic Mcu 32bit 256kb Flash 100lqfp
56800EX 56F8xxx Microcontroller IC 32-Bit Single-Core 100MHz 256KB (256K x 8) FLASH 100-LQFP (14x14)
Specifications of MC56F84789VLL
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | NXP USA Inc. |
| Series | 56F8xxx |
| Package | Tray |
| Product Status | Active |
| Core Processor | 56800EX |
| Core Size | 32-Bit Single-Core |
| Speed | 100MHz |
| Connectivity | CANbus, I²C, LINbus, SCI, SPI |
| Peripherals | Brown-out Detect/Reset, DMA, LVD, POR, PWM, WDT |
| Number of I/O | 86 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Data Converters | A/D 16x12b, 16x16b; D/A 1x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 100-LQFP |
| Supplier Device Package | 100-LQFP (14x14) |
| Base Product Number | MC56F84 |
Features of MC56F84789VLL
• This family of digital signal controllers (DSCs) is based on the 32-bit 56800EX core. Each device combines, on a single chip, the processing power of a DSP and the functionality of an MCU with a flexible set of peripherals to support many target applications:
– Industrial control
– Home appliances
– Smart sensors
– Fire and security systems
– Switched-mode power supply and power management
– Uninterruptible Power Supply (UPS)
– Solar and wind power generator
– Power metering
– Motor control (ACIM, BLDC, PMSM, SR, stepper)
– Handheld power tools
– Circuit breaker
– Medical device/equipment
– Instrumentation
– Lighting
• DSC based on 32-bit 56800EX core
– Up to 100 MIPS at 100 MHz core frequency
– DSP and MCU functionality in a unified, C-efficient architecture
• On-chip memory
– Up to 288 KB (256 KB + 32 KB) flash memory, including up to 32 KB FlexNVM
– Up to 32 KB RAM
– Up to 2 KB FlexRAM with EEE capability
– 100 MHz program execution from both internal flash memory and RAM
– On-chip flash memory and RAM can be mapped into both program and data memory spaces
• Analog – Two high-speed, 8-channel, 12-bit ADCs with dynamic x2, x4 programmable amplifier
– One 20-channel, 16-bit ADC
– Four analog comparators with integrated 6-bit DAC references
– One 12-bit DAC
• PWMs and timers
– Two eFlexPWM modules with up to 24 PWM outputs, one including 8 channels with high resolution NanoEdge placement
– Two 16-bit quad timer (2 x 4 16-bit timers)
– Two Periodic Interval Timers (PITs)
– One Quadrature Decoder
– Two Programmable Delay Blocks (PDBs)
• Communication interfaces
– Three high-speed queued SCI (QSCI) modules with
LIN slave functionality
– Up to three queued SPI (QSPI) modules
– Two SMBus-compatible I2C ports
– One flexible controller area network (FlexCAN) module
• Security and integrity
– Cyclic Redundancy Check (CRC) generator
– Computer operating properly (COP) watchdog
– External Watchdog Monitor (EWM)
• Clocks
– Two on-chip relaxation oscillators: 8 MHz (400 kHz at standby mode) and 32 kHz
– Crystal / resonator oscillator
• System
– DMA controller
– Integrated power-on reset (POR) and low-voltage interrupt (LVI) and brown-out reset module
– Inter-module crossbar connection
– JTAG/enhanced on-chip emulation (EOnCE) for unobtrusive, real-time debugging
Comparator of MC56F84789VLL
• Full rail-to-rail comparison range
• Support for high and low speed modes
• Selectable input source includes external pins and internal DACs
• Programmable output polarity
• 6-bit programmable DAC as a voltage reference per comparator
• Three programmable hysteresis levels
• Selectable interrupt on rising-edge, falling-edge, or toggle of a comparator output
Environmental & Export Classifications of MC56F84789VLL
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
