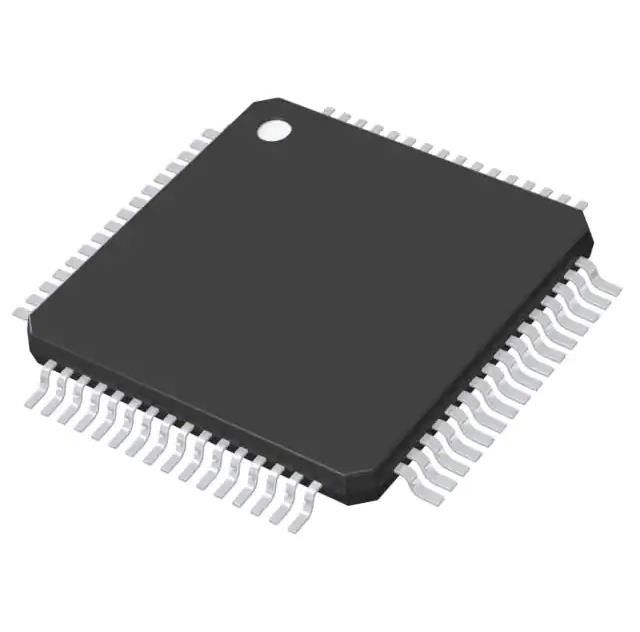

CS42448-DQZR Ic Electronic Components Codec 108db 192khz 64-Lqfp
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CS42448-DQZR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Tape & Reel (TR) | Product Status: | Active |
|---|---|---|---|
| Type: | Audio | Data Interface: | Serial |
| Resolution (Bits): | 24 B | Number Of ADCs / DACs: | 6/8 |
| Sigma Delta: | 3V ~ 3.6V | Voltage - Supply, Analog: | -40°C ~ 85°C |
Product Description
CS42448-DQZR Ic Electronic Components Codec 108db 192khz 64-Lqfp
Audio Interface 24 b Serial 64-LQFP (10x10)
Specifications of CS42448-DQZR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| CODECS | |
| Mfr | Cirrus Logic Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Audio |
| Data Interface | Serial |
| Resolution (Bits) | 24 b |
| Number of ADCs / DACs | 6月8日 |
| Sigma Delta | Yes |
| S/N Ratio, ADCs / DACs (db) Typ | - |
| Dynamic Range, ADCs / DACs (db) Typ | 105 / 108 (Differential), 102 / 105 (Single-Ended) |
| Voltage - Supply, Analog | 3.14V ~ 5.25V |
| Voltage - Supply, Digital | 3.14V ~ 5.25V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 64-LQFP |
| Supplier Device Package | 64-LQFP (10x10) |
| Base Product Number | CS42448 |
Features of CS42448-DQZR
• Six 24-bit A/D, Eight 24-bit D/A Converters
• ADC Dynamic Range
- 105 dB Differential
- 102 dB Single-Ended
• DAC Dynamic Range
- 108 dB Differential
- 105 dB Single-Ended
• ADC/DAC THD+N
• ADC Dynamic Range
- 105 dB Differential
- 102 dB Single-Ended
• DAC Dynamic Range
- 108 dB Differential
- 105 dB Single-Ended
• ADC/DAC THD+N
-98 dB Differential
-95 dB Single-Ended
• Compatible with Industry-Standard TimeDivision Multiplexed (TDM) Serial Interface
• System Sampling Rates up to 192 kHz
-95 dB Single-Ended
• Compatible with Industry-Standard TimeDivision Multiplexed (TDM) Serial Interface
• System Sampling Rates up to 192 kHz
• Programmable ADC High-Pass Filter for DCOffset Calibration
• Logarithmic Digital Volume Control
• Logarithmic Digital Volume Control
• Supports Logic Levels Between 5 V and 1.8 V
• Popguarde Technology
• Popguarde Technology
Applications of CS42448-DQZR
The CS42448 CODEC provides six multi-bit ana-log-to-digital and eight multi-bit digital-to-analogdelta-sigma converters. The CODEC is capable of operation with either differential or single-ended inputsand outputs, in a 64-pin LQFP package.
Environmental & Export Classifications of CS42448-DQZR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
