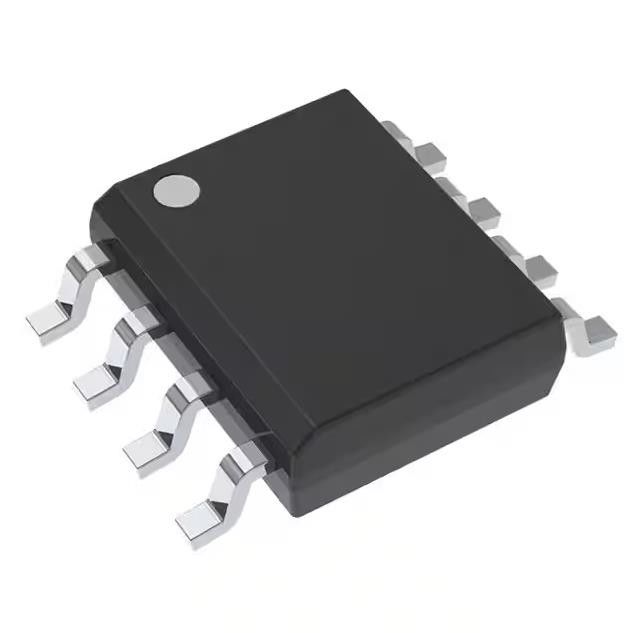

DS90LV027AQMAX/NOPB Transistor Ic Chip Driver 2/0 8soic LVDS
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DS90LV027AQMAX/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Type: | Driver |
|---|---|---|---|
| Protocol: | LVDS | Number Of Drivers/Receivers: | 2/0 |
| Mounting Type: | Surface Mount | Data Rate: | 600Mbps |
| Voltage - Supply: | 3V ~ 3.6V | Operating Temperature: | -40°C ~ 85°C |
Product Description
DS90LV027AQMAX/NOPB Transistor Ic Chip Driver 2/0 8soic
2/0 Driver LVDS 8-SOIC
Specifications of DS90LV027AQMAX/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Driver |
| Protocol | LVDS |
| Number of Drivers/Receivers | 2/0 |
| Duplex | - |
| Data Rate | 600Mbps |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | DS90LV027 |
Features of DS90LV027AQMAX/NOPB
• Ultra Low Power Dissipation
• Operating Range above 155 Mbps
• Flow-through pinout simplifies PCB layout
• Conforms to TIA/EIA-644 Standard
• 8-Lead SOIC Package Saves Space
• VCM ±1V center around 1.2V
• Low Differential Output Swing Typical 340 mV
• Power Off Protection (outputs in high impedance)
Applications of DS90LV027AQMAX/NOPB
The DS90LV027 is a dual LVDS driver device optimized for high data rate and low power applications. The DS90LV027 is a current mode driver allowing power dissipation to remain low even at high frequency. In addition, the short circuit fault current is also minimized. The device is in a 8-lead SOIC package. The DS90LV027 has a flow-through design for easy PCB layout. The differential driver outputs provides low EMI with its low output swings typically 340 mV. Perfect for high speed transfer of clock and data. Pair with any of TI's LVDS receivers.
Environmental & Export Classifications of DS90LV027AQMAX/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | 5A991B1 |
| HTSUS | 8542.39.0001 |
