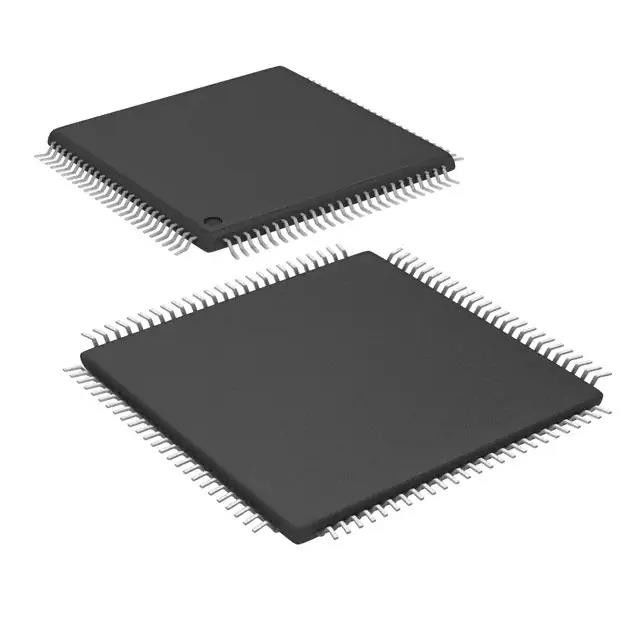

PIC32MX460F512L-80I/PT Transistor Ic Chip Mcu 32bit 512kb Flash 100tqfp
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | PIC32MX460F512L-80I/PT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of I/O: | 85 | Program Memory Size: | 512KB (512K X 8) |
|---|---|---|---|
| Program Memory Type: | FLASH | Operating Temperature: | -40°C ~ 85°C (TA) |
| RAM Size: | 32K X 8 | Voltage - Supply (Vcc/Vdd): | 2.3V ~ 3.6V |
| Data Converters: | A/D 16x10b | Oscillator Type: | Internal |
Product Description
PIC32MX460F512L-80I/PT Transistor Ic Chip Mcu 32bit 512kb Flash 100tqfp
MIPS32® M4K™ PIC® 32MX Microcontroller IC 32-Bit Single-Core 80MHz 512KB (512K x 8) FLASH 100-TQFP (12x12)
Specifications of PIC32MX460F512L-80I/PT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Microchip Technology |
| Series | PIC® 32MX |
| Package | Tray |
| Product Status | Active |
| Core Processor | MIPS32® M4K™ |
| Core Size | 32-Bit Single-Core |
| Speed | 80MHz |
| Connectivity | I²C, IrDA, LINbus, PMP, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 85 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.3V ~ 3.6V |
| Data Converters | A/D 16x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 100-TQFP |
| Supplier Device Package | 100-TQFP (12x12) |
| Base Product Number | PIC32MX460 |
Features of PIC32MX460F512L-80I/PT
• Operating temperature range of -40ºC to +105ºC
• Operating voltage range of 2.3V to 3.6V
• 32K to 512K Flash memory (plus an additional 12 KB of boot Flash)
• 8K to 32K SRAM memory
• Pin-compatible with most PIC24/dsPIC® DSC devices
• Multiple power management modes
• Multiple interrupt vectors with individually programmable priority
• Fail-Safe Clock Monitor Mode
• Configurable Watchdog Timer with on-chip Low-Power RC Oscillator for reliable operation
Applications of PIC32MX460F512L-80I/PT
• Up to 16-channel 10-bit Analog-to-Digital Converter:
- 1000 ksps conversion rate
- Conversion available during Sleep, Idle
• Two Analog Comparators
Environmental & Export Classifications of PIC32MX460F512L-80I/PT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
