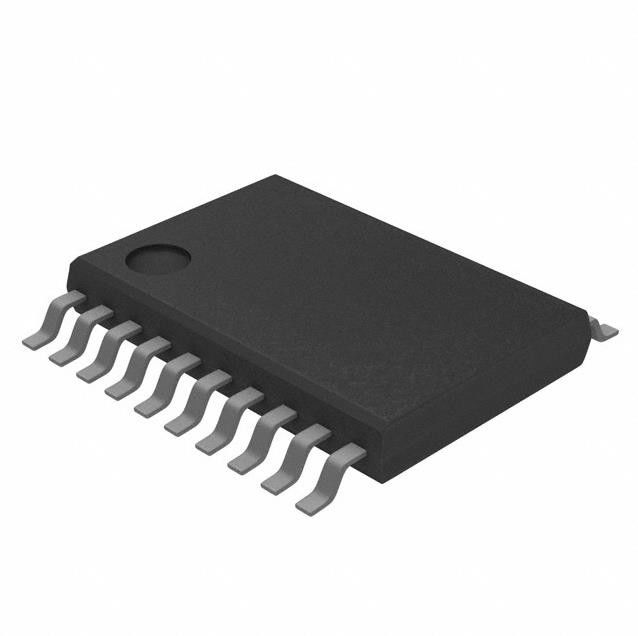

ADS1243IPWR Converter Ic Chip Adc 24bit Sigma-Delta 20tssop 8 Input
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADS1243IPWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | PGA | Number Of A/D Converters: | 1 |
|---|---|---|---|
| Architecture: | Sigma-Delta | Reference Type: | External |
| Voltage - Supply, Analog: | 2.7V ~ 5.25V | Voltage - Supply, Digital: | 2.7V ~ 5.25V |
| Operating Temperature: | -40°C ~ 85°C | Package / Case: | 20-TSSOP (0.173", 4.40mm Width) |
Product Description
ADS1243IPWR Converter Ic Chip Adc 24bit Sigma-Delta 20tssop 8 Input
24 Bit Analog to Digital Converter 8 Input 1 Sigma-Delta 20-TSSOP
Specifications of ADS1243IPWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Number of Bits | 24 |
| Sampling Rate (Per Second) | 15 |
| Number of Inputs | 8 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-PGA-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Features | PGA |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
| Mounting Type | Surface Mount |
| Base Product Number | ADS1243 |
Features of ADS1243IPWR
● 24 BITS NO MISSING CODES
● SIMULTANEOUS 50Hz AND 60Hz REJECTION (–90dB MINIMUM)
● 0.0015% INL
● 21 BITS EFFECTIVE RESOLUTION (PGA = 1), 19 BITS (PGA = 128)
● PGA GAINS FROM 1 TO 128
● SINGLE-CYCLE SETTLING
● PROGRAMMABLE DATA OUTPUT RATES
● EXTERNAL DIFFERENTIAL REFERENCE OF 0.1V TO 5V
● ON-CHIP CALIBRATION
● SPI™ COMPATIBLE
● 2.7V TO 5.25V SUPPLY RANGE
● 600µW POWER CONSUMPTION
● UP TO EIGHT INPUT CHANNELS
● UP TO EIGHT DATA I/O
Applications of ADS1243IPWR
● INDUSTRIAL PROCESS CONTROL
● LIQUID/GAS CHROMATOGRAPHY
● BLOOD ANALYSIS
● SMART TRANSMITTERS
● PORTABLE INSTRUMENTATION
● WEIGHT SCALES
Environmental & Export Classifications of ADS1243IPWR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
