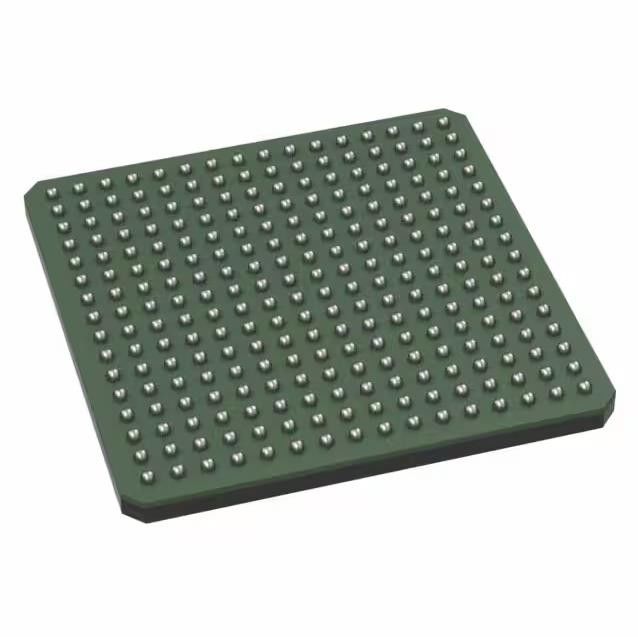

BCM8705BIFBG Transistor Ic Chip Telecom Interface 10 Gigabit
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | BCM8705BIFBG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Tray | Product Status: | Active |
|---|---|---|---|
| Function: | Transceiver | Interface: | Serial, XAUI |
| Number Of Circuits: | 1 | Mounting Type: | Surface Mount |
| Package / Case: | 256-BGA | Supplier Device Package: | 256-FBGA |
Product Description
BCM8705BIFBG Transistor Ic Chip Telecom Interface 10 Gigabit
Telecom IC Transceiver 256-FBGA
Specifications of BCM8705BIFBG
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Telecom | |
| Mfr | Broadcom Limited |
| Series | - |
| Package | Tray |
| Product Status | Active |
| Function | Transceiver |
| Interface | Serial, XAUI |
| Number of Circuits | 1 |
| Voltage - Supply | - |
| Current - Supply | - |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Package / Case | 256-BGA |
| Supplier Device Package | 256-FBGA |
| Base Product Number | BCM8705 |
Features of BCM8705BIFBG
• Fully integrated CMU, CDR, SerDes, limiting amplifier, EyeOpener®, and 4-lane XAUI™ interface
• PMD interface supported serial rates: 9.953/10.3125/ 10.5188-Gbps
• Receive equalization on XAUI and 10G serial interfaces
• Transmit pre-emphasis and amplitude control on XAUI interface
• 10G PMD interface phase and decision threshold adjust
• WIS layer for EOS/WAN applications
• SONET performance monitoring
• Supports Broadcom’s StrataXGS® Ethernet switches service aware flow control (SAFC) protocol
• Meets and exceeds industry standard
• IEEE 802.3™ae serial Ethernet transceiver (LAN/WAN PHY), MDIO Clause 45 management interface with extended indirect address register access
• 10-Gigabit Fibre Channel draft, rev 3.0
• Support for XFP/XFI interfaces
• Support for XENPAK/X2 3.0 and XPAK MSA optical module standards
• Additional features
• Jumbo packets support in WAN mode
• Reference clock output for XFP module reference clock
• I 2C master to control XFP module from device
• Staged power-up mode to minimize in-rush current
• Loopback modes supporting IEEE standards modes
• Built-in self-test (BIST) and PRBS generator/checker
• Pin-compatible with the BCM8704
• Low power: LAN mode 900 mW, WAN mode 1.0W to 1.1W
• Available in 13-mm x 13-mm and 17-mm x 17-mm plastic BGA (Pb-free version also available)
Applications of BCM8705BIFBG
• XENPAK, X2, XPAK modules
• Interface to XFP modules
• LAN/MAN/WAN switch/routers
• Hubs and repeaters
• Network interface cards (NICs)
Environmental & Export Classifications of BCM8705BIFBG
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 5A991B1 |
| HTSUS | 8542.39.0001 |
