ADG1604BCPZ-REEL7 Transistor Ic Chip Switch Sp4tx1 1.1ohm 16lfcsp
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADG1604BCPZ-REEL7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Switch Circuit: | SP4T |
|---|---|---|---|
| Multiplexer/Demultiplexer Circuit: | 4:01 | Number Of Circuits: | 1 |
| On-State Resistance (Max): | 1.1Ohm | Channel-to-Channel Matching (ΔRon): | 30mOhm |
| Voltage - Supply, Single (V+): | 3.3V ~ 16V | Voltage - Supply, Dual (V±): | ±3.3V ~ 8V |
Product Description
ADG1604BCPZ-REEL7 Transistor Ic Chip Switch Sp4tx1 1.1ohm 16lfcsp
1 Circuit IC Switch 4:1 1.1Ohm 16-LFCSP-VQ (4x4)
Specifications of ADG1604BCPZ-REEL7
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:01 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 1.1Ohm |
| Channel-to-Channel Matching (ΔRon) | 30mOhm |
| Voltage - Supply, Single (V+) | 3.3V ~ 16V |
| Voltage - Supply, Dual (V±) | ±3.3V ~ 8V |
| Switch Time (Ton, Toff) (Max) | 95ns, 173ns |
| -3db Bandwidth | 19MHz |
| Charge Injection | 125pC |
| Channel Capacitance (CS(off), CD(off)) | 60pF, 270pF |
| Current - Leakage (IS(off)) (Max) | 200pA |
| Crosstalk | -70dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |

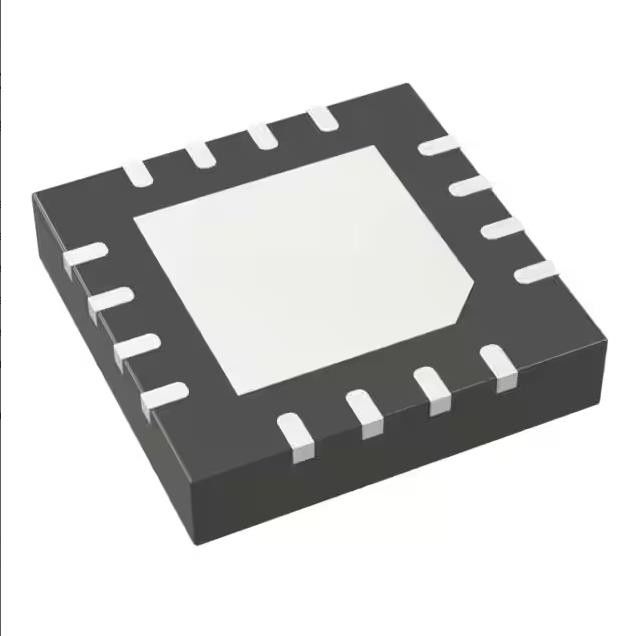

| Package / Case | 16-VQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP-VQ (4x4) |
| Base Product Number | ADG1604 |
Features of ADG1604BCPZ-REEL7
•1 Ω typical on resistance
•0.2 Ω on resistance flatness
•±3.3 V to ±8 V dual-supply operation
•3.3 V to 16 V single-supply operation
•No VL supply required
•3 V logic-compatible inputs
•Rail-to-rail operation
•Continuous current per channel
•LFCSP: 504 mA
•TSSOP: 315 mA
•14-lead TSSOP and 16-lead, 4 mm × 4 mm LFCSP
Applications of ADG1604BCPZ-REEL7
• Communication systems
• Medical systems
• Audio signal routing
• Video signal routing
• Automatic test equipment
• Data acquisition systems
• Battery-powered systems
• Sample-and-hold systems
• Relay replacements
Environmental & Export Classifications of ADG1604BCPZ-REEL7
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
