MSP430F5247IRGCR Integrated Circuit Chip Mcu 16bit 64kb Flash 64vqfn
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MSP430F5247IRGCR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Core Processor: | MSP430 CPUXV2 |
|---|---|---|---|
| Core Size: | 16-Bit | Speed: | 25MHz |
| Connectivity: | I²C, IrDA, SPI, UART/USART | Peripherals: | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number Of I/O: | 53 | Program Memory Size: | 64KB (64K X 8) |
Product Description

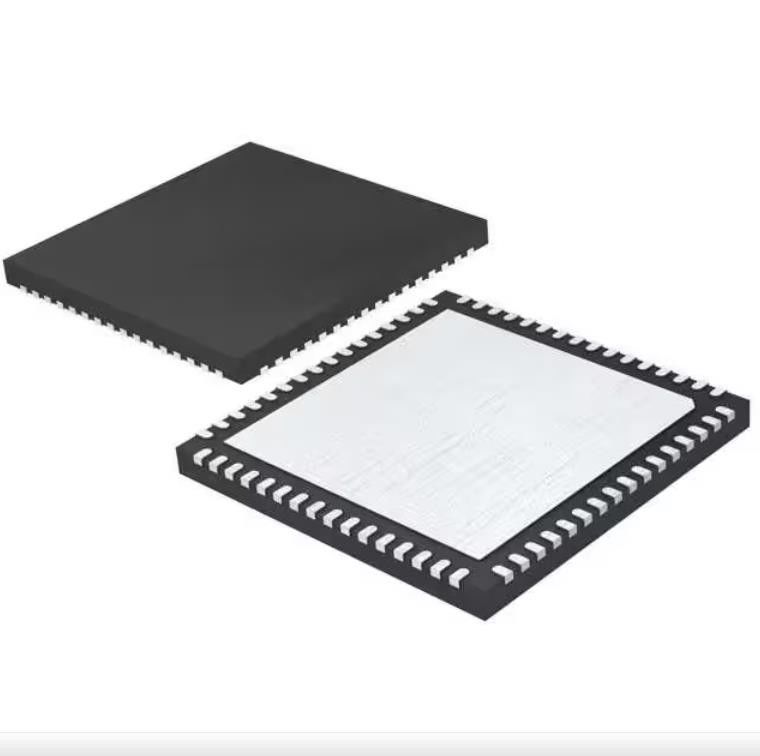

MSP430F5247IRGCR Integrated Circuit Chip Mcu 16bit 64kb Flash 64vqfn
MSP430 CPUXV2 MSP430F5xx Microcontroller IC 16-Bit 25MHz 64KB (64K x 8) FLASH 64-VQFN (9x9)
Specifications of MSP430F5247IRGCR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Texas Instruments |
| Series | MSP430F5xx |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Core Processor | MSP430 CPUXV2 |
| Core Size | 16-Bit |
| Speed | 25MHz |
| Connectivity | I²C, IrDA, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 53 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 12x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 64-VFQFN Exposed Pad |
| Supplier Device Package | 64-VQFN (9x9) |
| Base Product Number | MSP430F5247 |
Features of MSP430F5247IRGCR
• Low supply-voltage range: 3.6 V down to 1.8 V
• Ultra-low power consumption
– Active mode (AM): all system clocks active 290 µA/MHz at 8 MHz, 3.0 V, flash program execution (typical) 150 µA/MHz at 8 MHz, 3.0 V, RAM program execution (typical)
– Standby mode (LPM3): real-time clock (RTC) with crystal, watchdog, and supply supervisor operational, full RAM retention, fast wakeup: 1.9 µA at 2.2 V, 2.1 µA at 3.0 V (typical) low-power oscillator (VLO), general-purpose counter, watchdog, and supply supervisor operational, full RAM retention, fast wakeup: 1.4 µA at 3.0 V (typical)
– Off mode (LPM4): full RAM retention, supply supervisor operational, fast wakeup: 1.1 µA at 3.0 V (typical)
– Shutdown mode (LPM4.5): 0.18 µA at 3.0 V (Typical)
• Wake up from standby mode in 3.5 µs (typical)
• 16-bit RISC architecture, extended memory, up to 25-MHz system clock
• Flexible power-management system
– Fully integrated LDO with programmable regulated core supply voltage
– Supply voltage supervision, monitoring, and brownout
• Unified clock system
– FLL control loop for frequency stabilization
– Low-power low-frequency internal clock source (VLO)
– Low-frequency trimmed internal reference source (REFO)
– 32-kHz watch crystals (XT1)
– High-frequency crystals up to 32 MHz (XT2)
• 16-bit timer TA0, Timer_A with five capture/ compare registers
• 16-bit timer TA1, Timer_A with three capture/ compare registers
• 16-bit timer TA2, Timer_A with three capture/ compare registers
• 16-bit timer TB0, Timer_B with seven capture/ compare shadow registers
• Two universal serial communication interfaces (USCIs)
– USCI_A0 and USCI_A1 each support:
• Enhanced UART with automatic baud-rate detection
• IrDA encoder and decoder
• Synchronous SPI
– USCI_B0 and USCI_B1 each support:
• I2C
• Synchronous SPI
• 10-bit analog-to-digital converter (ADC) with internal reference, sample-and-hold
• Comparator
• Hardware multiplier supports 32-bit operations
• Serial onboard programming, no external programming voltage needed
• 3-channel internal DMA
• Basic timer with RTC feature
• Device Comparison summarizes the family members
Applications of MSP430F5247IRGCR
• Analog Sensor Systems
• Digital Sensor Systems
• Data Loggers • General-Purpose Applications
Environmental & Export Classifications of MSP430F5247IRGCR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
