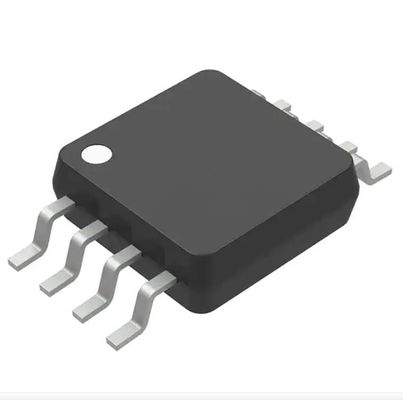

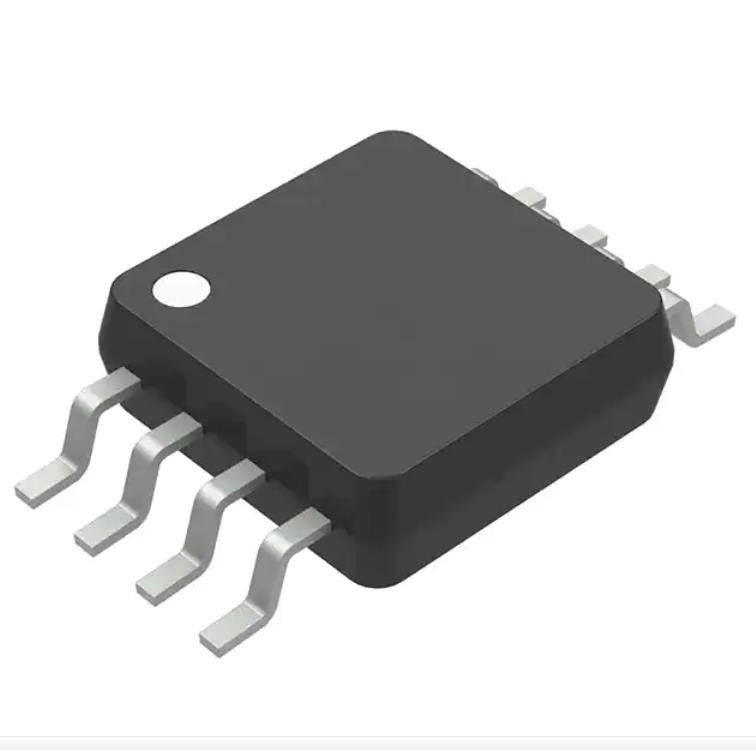

NCS20062DMR2G Integrated Circuit Ic Chip Opamp Gp 2 Circuit 8msop
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | NCS20062DMR2G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Supply Span (Min): | 1.8 V | Voltage - Supply Span (Max): | 5.5 V |
|---|---|---|---|
| Operating Temperature: | -40°C ~ 125°C (TA) | Mounting Type: | Surface Mount |
| Package / Case: | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Supplier Device Package: | 8-MSOP |
| Base Product Number: | NCS20062 | Current - Supply: | 140µA (x2 Channels) |
Product Description
NCS20062DMR2G Integrated Circuit Ic Chip Opamp Gp 2 Circuit 8msop
General Purpose Amplifier 2 Circuit Rail-to-Rail 8-MSOP
Specifications of NCS20062DMR2G
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Amplifier Type | General Purpose |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Slew Rate | 1.2V/µs |
| Gain Bandwidth Product | 3 MHz |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 500 µV |
| Current - Supply | 140µA (x2 Channels) |
| Voltage - Supply Span (Min) | 1.8 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
| Base Product Number | NCS20062 |
Features of NCS20062DMR2G
• Gain−Bandwidth Product: 3 MHz
• Low Supply Current/ Channel: 125 A typ (VS = 1.8 V)
• Low Input Offset Voltage: 4 mV max
• Wide Supply Range: 1.8 V to 5.5 V
• Wide Temperature Range: −40°C to +125°C
• Rail−to−Rail Input and Output
• Unity Gain Stable
• Available in Single, Dual and Quad Packages
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements;
AEC−Q100 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Applications of NCS20062DMR2G
• Automotive • Battery Powered/ Portable
• Sensor Signal Conditioning
• Low Voltage Current Sensing
• Filter Circuits • Unity Gain Buffer
Environmental & Export Classifications of NCS20062DMR2G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
