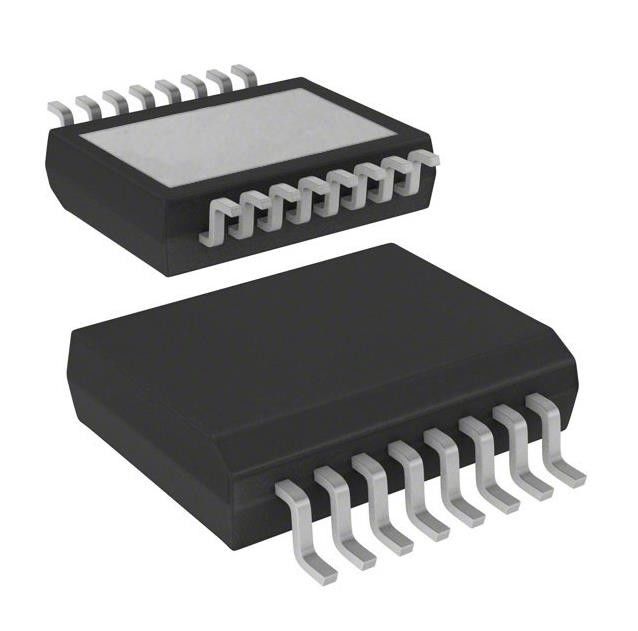

VN7016AJTR Transistor Ic Chip Pwr Drvr N-Chan 1:1 Pwrsso16 Driver
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | VN7016AJTR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Not For New Designs | Switch Type: | General Purpose |
|---|---|---|---|
| Number Of Outputs: | 1 | Ratio - Input:Output: | 0.042361111 |
| Output Configuration: | High Side | Output Type: | N-Channel |
| Interface: | On/Off | Voltage - Load: | 4V ~ 28V |
Product Description
VN7016AJTR Transistor Ic Chip Ic Pwr Drvr N-Chan 1:1 Pwrsso16
Power Switch/Driver 1:1 N-Channel 55A PowerSSO-16
Specifications of VN7016AJTR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | STMicroelectronics |
| Series | VIPower™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Not For New Designs |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 4V ~ 28V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 55A |
| Rds On (Typ) | 16mOhm |
| Input Type | Non-Inverting |
| Features | Auto Restart, Status Flag |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerSSO-16 |
| Package / Case | 16-PowerLFSOP (0.154", 3.90mm Width) |
| Base Product Number | VN7016 |
Features of VN7016AJTR
• Automotive qualified
• General
− Single channel smart high-side driver with MultiSense analog feedback
− Very low standby current
− Compatible with 3 V and 5 V CMOS outputs
• MultiSense diagnostic functions
− Multiplexed analog feedback of: load current with high precision proportional current mirror, VCC supply voltage and
TCHIP device temperature
− Overload and short to ground (power limitation) indication
− Thermal shutdown indication
− OFF-state open-load detection
− Output short to VCC detection
− Sense enable/disable
• Protections
− Undervoltage shutdown
− Overvoltage clamp
− Load current limitation
− Self limiting of fast thermal transients
− Configurable latch-off on overtemperature or power limitation with dedicated fault reset pin
− Loss of ground and loss of VCC
− Reverse battery with external components
− Electrostatic discharge protection
Applications of VN7016AJTR
• All types of Automotive resistive, inductive and capacitive loads
• Specially intended for Automotive Headlamps
Environmental & Export Classifications of VN7016AJTR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
Want to Know more details about this product
