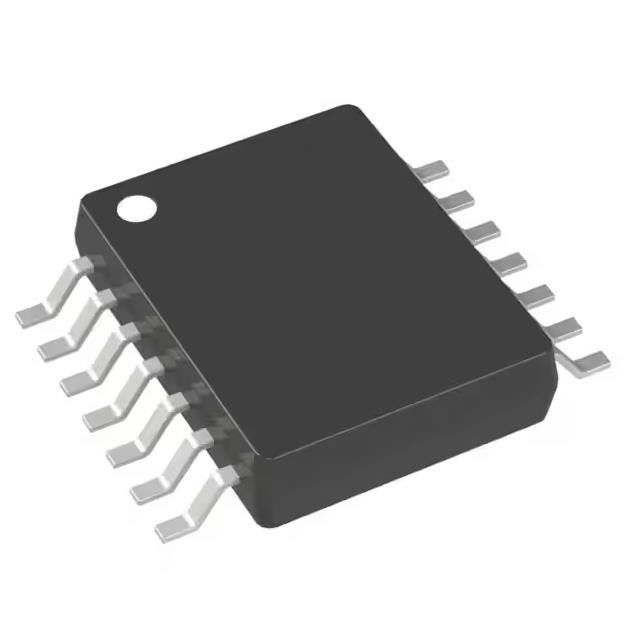

ADG5404FBRUZ-RL7 Transistor Ic Chip Ic Mux 4:1 11.5ohm 14tssop
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADG5404FBRUZ-RL7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Switch Time (Ton, Toff) (Max): | 535ns, 205ns |
|---|---|---|---|
| Multiplexer/Demultiplexer Circuit: | 4:01 | Number Of Circuits: | 1 |
| On-State Resistance (Max): | 11.5Ohm | Channel-to-Channel Matching (ΔRon): | 650mOhm |
| Voltage - Supply, Single (V+): | 8V ~ 44V | Voltage - Supply, Dual (V±): | ±5V ~ 22V |
Product Description
ADG5404FBRUZ-RL7 Transistor Ic Chip Ic Mux 4:1 11.5ohm 14tssop
1 Circuit IC Switch 4:1 11.5Ohm 14-TSSOP
Specifications of ADG5404FBRUZ-RL7
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 4:01 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 11.5Ohm |
| Channel-to-Channel Matching (ΔRon) | 650mOhm |
| Voltage - Supply, Single (V+) | 8V ~ 44V |
| Voltage - Supply, Dual (V±) | ±5V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 535ns, 205ns |
| -3db Bandwidth | 110MHz |
| Charge Injection | 695pC |
| Channel Capacitance (CS(off), CD(off)) | 11pF, 47pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -73dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP |
| Base Product Number | ADG5404 |
Features of ADG5404FBRUZ-RL7
• Overvoltage protection up to −55V and +55 V
• Power-off protection up to −55 V and +55 V
• Overvoltage detection on source pins
• Interrupt flags indicate fault status
• Low on resistance: 10 Ω (typical)
• On-resistance flatness of 0.5 Ω(maximum)
• 4 kV human body model (HBM) ESD rating
• Latch-up immune under any circumstance
• Known state without digital inputs present
• VSS to VDD analog signal range ±5 V to ±22 V
dual supply operation 8 V to 44 V single-supply operation
• Fully specified at ±15 V, ±20 V, 12 V, and 36 V
Applications of of ADG5404FBRUZ-RL7
• Analog input/output modules
• Process control/distributed
control systems
• Data acquisition
• Instrumentation
• Avionics
• Automatic test equipment
• Communication systems
• Relay replacement
Environmental & Export Classifications of ADG5404FBRUZ-RL7
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
