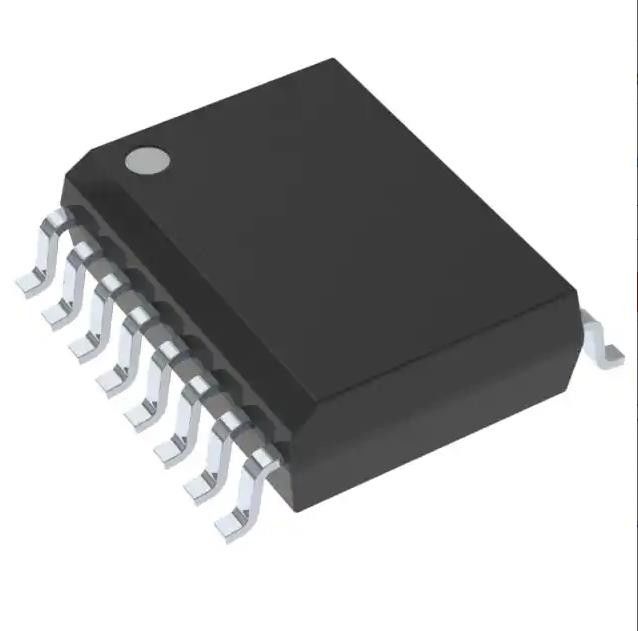

AMC3302QDWERQ1 Transistor Ic Chip Automotive 50-Mv Input, Precisio
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | AMC3302QDWERQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Mfr: | Texas Instruments | Package: | Tape & Reel (TR) |
|---|---|---|---|
| Product Status: | Active | Type: | Amplifier |
| Mounting Type: | Surface Mount | Package / Case: | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package: | 16-SOIC | Category: | Linear |
Product Description
AMC3302QDWERQ1 Transistor Ic Chip Automotive 50-Mv Input, Precisio
Amplifier IC 16-SOIC
Specifications of AMC3302QDWERQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Special Purpose Amplifiers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Amplifier |
| Applications | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
Features of AMC3302QDWERQ1
• AEC-Q100 qualified for automotive applications:
– Temperature grade 1: –40°C to +125°C, TA
• 3.3-V or 5-V single supply with integrated DC/DC converter
• ±50-mV input voltage range optimized for current measurement using shunt resistors
• Fixed gain: 41
• Low DC errors:
– Offset voltage: ±50 µV (maximum)
– Offset drift: ±0.5 µV/°C (maximum)
– Gain error: ±0.2% (maximum)
– Gain error drift: ±35 ppm/°C(maximum)
– Nonlinearity: ±0.03% (maximum)
• High CMTI: 95 kV/µs (minimum)
• System-level diagnostic features
• Meets CISPR-11 and CISPR-25 EMI standards
• Safety-related certifications:
– 6000-VPK reinforced isolation per DIN VDE V 0884-11
– 4250-VRMS isolation for 1 minute per UL1577
Applications of AMC3302QDWERQ1
• Shunt-resistor-based current sensing in:
– HEV/EV charging piles
– HEV/EV on-board chargers (OBC)
– HEV/EV DC/DC converters
– HEV/EV traction inverters
Environmental & Export Classifications of AMC3302QDWERQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | Not applicable |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
