SAK-TC222S-16F133N AC Ic Chip Mcu 32bit 1mb Flash 80tqfp 128K x 8
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SAK-TC222S-16F133N AC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Core Processor: | TriCore™ |
|---|---|---|---|
| Core Size: | 32-Bit Single-Core | Speed: | 133MHz |
| Peripherals: | DMA, WDT | Number Of I/O: | 59 |
| Program Memory Size: | 1MB (1M X 8) | Program Memory Type: | FLASH |
Product Description

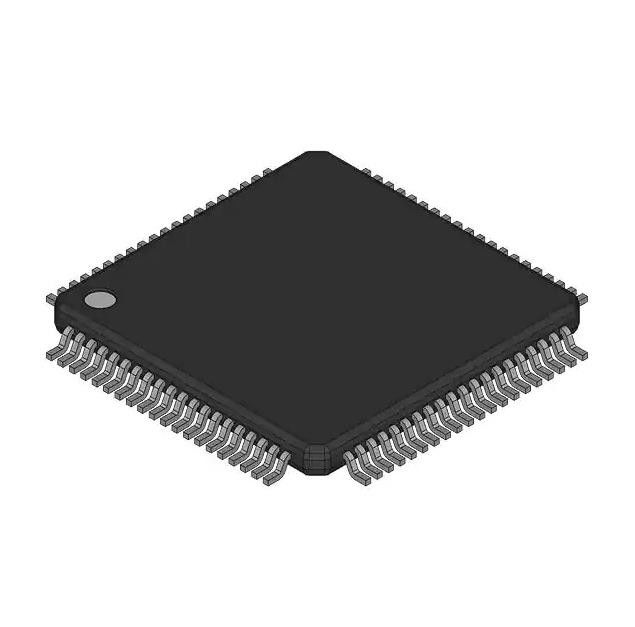

SAK-TC222S-16F133N AC Transistor Ic Chip Ic Mcu 32bit 1mb Flash 80tqfp
TriCore™ AURIX™ Microcontroller IC 32-Bit Single-Core 133MHz 1MB (1M x 8) FLASH PG-TQFP-80-7
Specifications of SAK-TC222S-16F133N AC
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Infineon Technologies |
| Series | AURIX™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Core Processor | TriCore™ |
| Core Size | 32-Bit Single-Core |
| Speed | 133MHz |
| Connectivity | CANbus, FlexRay, LINbus, QSPI |
| Peripherals | DMA, WDT |
| Number of I/O | 59 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 128K x 8 |
| RAM Size | 96K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3.3V |
| Data Converters | A/D 24x12b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 80-TQFP Exposed Pad |
| Supplier Device Package | PG-TQFP-80-7 |
| Base Product Number | TC222S16 |
Features of SAK-TC222S-16F133N AC
The TC22x / TC21x product family has the following features:
• High Performance Microcontroller with one CPU core
• Power Efficient scalar TriCore CPU (TC1.6E), having the following features:
– Binary code compatibility with TC1.6P
– 133 MHz operation at full temperature range
– 88 Kbyte Data Scratch-Pad RAM (DSPR)
– 8 Kbyte Instruction Scratch-Pad RAM (PSPR)
– 8 Kbyte Instruction Cache (ICACHE)
– 4 line read buffer (DRB)
• Lockstepped shadow core for TC1.6E
• Multiple on-chip memories
– All embedded NVM and SRAM are ECC protected
– 1 Mbyte Program Flash Memory (PFLASH)
– 96 Kbyte Data Flash Memory (DFLASH) usable for EEPROM emulation
– BootROM (BROM)
• 16-Channel DMA Controller with safe data transfer
• Sophisticated interrupt system (ECC protected)
• High performance on-chip bus structure
– 64-bit Cross Bar Interconnect (SRI) giving fast parallel access between bus masters, CPUs and memories
– 32-bit System Peripheral Bus (SPB) for on-chip peripheral and functional units
– One bus bridge (SFI Bridge)
• Safety Management Unit (SMU) handling safety monitor alarms
• Memory Test Unit with ECC, Memory Initialization and MBIST functions (MTU)
• Hardware I/O Monitor (IOM) for checking of digital I/O
• Versatile On-chip Peripheral Units
– Two Asynchronous/Synchronous Serial Channels (ASCLIN) with hardware LIN support (V1.3, V2.0, V2.1 and J2602) up to 50 MBaud
– Four Queued SPI Interface Channels (QSPI) with master and slave capability up to 50 Mbit/s
– One MultiCAN+ Module with 3 CAN nodes each and 128 free assignable message objects for high efficiency data handling via FIFO buffering and gateway data transfer
– 4 Single Edge Nibble Transmission (SENT) channels for connection to sensors
– One Generic Timer Module (GTM) providing a powerful set of digital signal filtering and timer functionality to realize autonomous and complex Input/Output management
– One Capture / Compare 6 module (Two kernels CCU60 and CCU61)
– One General Purpose 12 Timer Unit (GPT120)
• Versatile Successive Approximation ADC (VADC)
– Cluster of 2 independent ADC kernels
– Input voltage range from 0 V to 5.5V (ADC supply)
• Digital programmable I/O ports
• On-chip debug support for OCDS Level 1 (CPUs, DMA, On Chip Buses)
• Four/five wire JTAG (IEEE 1149.1) or DAP (Device Access Port) interface
• Power Management System and on-chip regulators
• Clock Generation Unit with System PLL
• Embedded Voltage Regulato
Ordering Information of SAK-TC222S-16F133N AC
The ordering code for Infineon microcontrollers provides an exact reference to the required product. This ordering code identifies:
• The derivative itself, i.e. its function set, the temperature range, and the supply voltage
• The package and the type of delivery.
For the available ordering codes for the TC212 / TC213 / TC214 / TC222 / TC223 / TC224 please refer to the “AURIX™ TC2x Data Sheet Addendum”, which summarizes all available variants.
Environmental & Export Classifications of SAK-TC222S-16F133N AC
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
