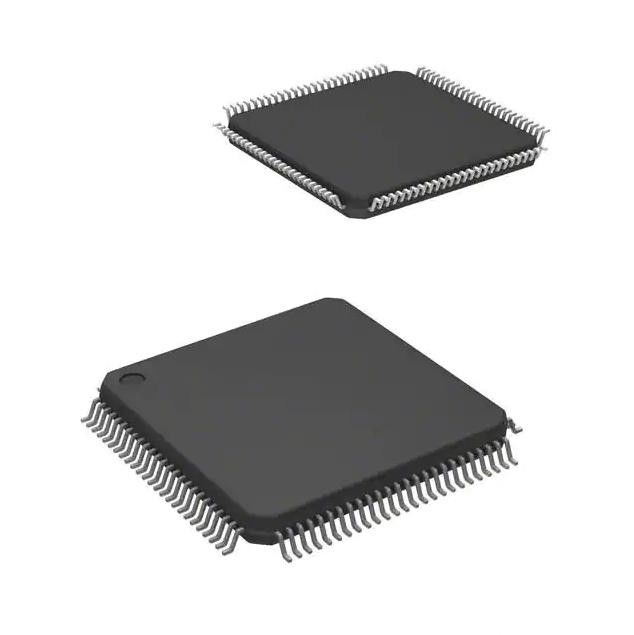

TMS320F28062FPZT Ic Electronic Components Mcu 32bit 128kb Flash 100lqfp
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TMS320F28062FPZT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Mfr: | Texas Instruments | Series: | C2000™ C28x Piccolo™ |
|---|---|---|---|
| Package: | Tray | Product Status: | Active |
| Core Processor: | C28x | Core Size: | 32-Bit Single-Core |
| Speed: | 90MHz | Number Of I/O: | 54 |
Product Description
TMS320F28062FPZT Transistor Ic Chip Ic Mcu 32bit 128kb Flash 100lqfp
C28x C2000™ C28x Piccolo™ Microcontroller IC 32-Bit Single-Core 90MHz 128KB (64K x 16) FLASH 100-LQFP (14x14)
Specifications of TMS320F28062FPZT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Texas Instruments |
| Series | C2000™ C28x Piccolo™ |
| Package | Tray |
| Product Status | Active |
| Core Processor | C28x |
| Core Size | 32-Bit Single-Core |
| Speed | 90MHz |
| Connectivity | CANbus, I²C, McBSP, SCI, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 54 |
| Program Memory Size | 128KB (64K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 26K x 16 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 1.995V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 100-LQFP |
| Supplier Device Package | 100-LQFP (14x14) |
| Base Product Number | TMS320 |
Features of TMS320F28062FPZT
• High-efficiency 32-bit CPU (TMS320C28x)
– 90 MHz (11.11-ns cycle time)
– 16 × 16 and 32 × 32 Multiply and Accumulate (MAC) operations
– 16 × 16 dual MAC
– Harvard bus architecture
– Atomic operations
– Fast interrupt response and processing
– Unified memory programming model
– Code-efficient (in C/C++ and Assembly)
• Floating-Point Unit (FPU)
– Native single-precision floating-point operations
• Programmable Control Law Accelerator (CLA)
– 32-bit floating-point math accelerator
– Executes code independently of the main CPU
• Viterbi, Complex Math, CRC Unit (VCU)
– Extends C28x instruction set to support complex multiply, Viterbi operations, and Cyclic Redundency Check (CRC)
• Embedded memory
– Up to 256KB of flash
– Up to 100KB of RAM
– 2KB of One-Time Programmable (OTP) ROM
• 6-channel Direct Memory Access (DMA)
• Low device and system cost
– Single 3.3-V supply
– No power sequencing requirement
– Integrated power-on reset and brownout reset
– Low-power operating modes
– No analog support pin
• Endianness: Little endian
• JTAG boundary scan support
– IEEE Standard 1149.1-1990 Standard Test Access Port and Boundary Scan Architecture
• Clocking
– Two internal zero-pin oscillators
– On-chip crystal oscillator/external clock input
– Watchdog timer module
– Missing clock detection circuitry
• Peripheral Interrupt Expansion (PIE) block that supports all peripheral interrupts
• Three 32-bit CPU timers
• Advanced control peripherals
• Up to 8 Enhanced Pulse-Width Modulator (ePWM) modules
– 16 PWM channels total (8 HRPWM-capable)
– Independent 16-bit timer in each module
• Three input Enhanced Capture (eCAP) modules
• Up to 4 High-Resolution Capture (HRCAP) modules
• Up to 2 Enhanced Quadrature Encoder Pulse (eQEP) modules
• 12-bit Analog-to-Digital Converter (ADC), dual Sample-and-Hold (S/H)
– Up to 3.46 MSPS
– Up to 16 channels
• On-chip temperature sensor
• 128-bit security key and lock
– Protects secure memory blocks
– Prevents reverse-engineering of firmware
• Serial port peripherals
– Two Serial Communications Interface (SCI) [UART] modules
– Two Serial Peripheral Interface (SPI) modules
– One Inter-Integrated-Circuit (I2C) bus
– One Multichannel Buffered Serial Port (McBSP) bus
– One Enhanced Controller Area Network (eCAN)
– Universal Serial Bus (USB) 2.0 (see Device Comparison for availability)
• Full-speed device mode
• Full-speed or low-speed host mode
• Up to 54 individually programmable, multiplexed General-Purpose Input/Output (GPIO) pins with input filtering
• Advanced debug features
– Analysis and breakpoint functions
– Real-time debug through hardware
• Package options
– 80-pin PFP and 100-pin PZP PowerPAD™ Thermally Enhanced Thin Quad Flatpacks (HTQFPs)
– 80-pin PN and 100-pin PZ Low-Profile Quad Flatpacks (LQFPs)
• Temperature options
– T: –40°C to 105°C
– S: –40°C to 125°C
– Q: –40°C to 125°C (AEC Q100 qualification for automotive applications)
Applications of TMS320F28062FPZT
• Air conditioner outdoor unit
• Door operator drive control
• Inverter & motor control
• On-board (OBC) & wireless charger
• Automated sorting equipment
• CNC control
• Textile machine
• Welding machine
• EV charging station power module
• Wireless vehicle charging module
• Energy storage power conversion system (PCS)
• Central inverter
• Micro inverter
• Solar power optimizer
• String inverter
• AC drive control module
• AC drive power stage module
• Linear motor power stage
• Servo drive control module
• Servo drive power stage module
• AC-input BLDC motor drive
• DC-input BLDC motor drive
• Industrial AC-DC
• Three phase UPS
Environmental & Export Classifications of TMS320F28062FPZT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
