TCA6424ARGJR Ic Chip Xpndr 400khz Smbus 32uqfn I/O Expander 24 I²C
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TCA6424ARGJR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | POR | Product Status: | Active |
|---|---|---|---|
| Digi-Key Programmable: | Not Verified | Number Of I/O: | 24 |
| Interface: | I²C, SMBus | Interrupt Output: | Yes |
| Output Type: | Push-Pull | Current - Output Source/Sink: | 10mA, 25mA |
Product Description
TCA6424ARGJR Transistor Ic Chip Ic Xpndr 400khz I2c Smbus 32uqfn
I/O Expander 24 I²C, SMBus 400 kHz 32-UQFN (5x5)
Specifications of TCA6424ARGJR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| I/O Expanders | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Number of I/O | 24 |
| Interface | I²C, SMBus |
| Interrupt Output | Yes |
| Features | POR |
| Output Type | Push-Pull |
| Current - Output Source/Sink | 10mA, 25mA |
| Clock Frequency | 400 kHz |
| Voltage - Supply | 1.65V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |

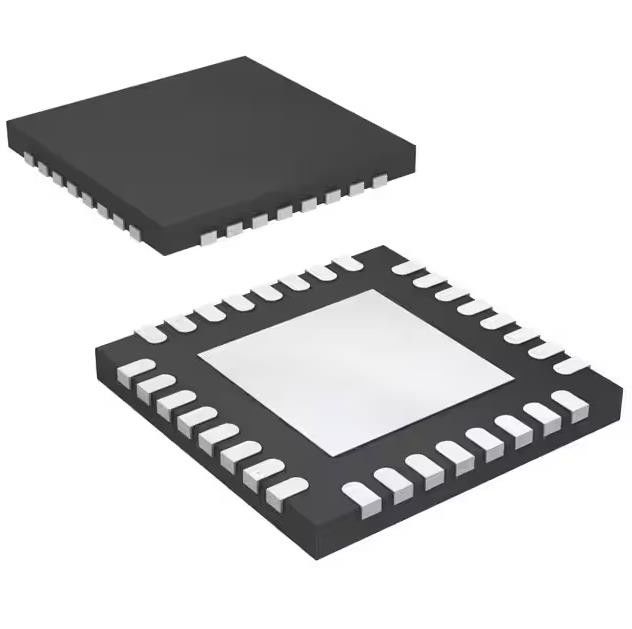

| Package / Case | 32-UFQFN Exposed Pad |
| Supplier Device Package | 32-UQFN (5x5) |
| Base Product Number | TCA6424 |
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| I/O Expanders | |
| Mfr | Texas Instruments |
Features of TCA6424ARGJR
• Operating power-supply voltage range of 1.65 V to5.5 V
• Allows bidirectional voltage-level translation andGPIO expansion between:
– 1.8-V SCL/SDA and 1.8-V, 2.5-V, 3.3-V, or 5-V P Port
– 2.5-V SCL/SDA and 1.8-V, 2.5-V, 3.3-V, or 5-V P Port
– 3.3-V SCL/SDA and 1.8-V, 2.5-V, 3.3-V, or 5-V P Port
– 5-V SCL/SDA and 1.8-V, 2.5-V, 3.3-V, or 5-V P Port
• I2C to Parallel port expander
• Low standby current consumption of 1 μA
• Schmitt-Trigger action allows slow input transition and better switching noise immunity at the SCL and SDA inputs
– Vhys = 0.18 V Typ at 1.8 V
– Vhys = 0.25 V Typ at 2.5 V
– Vhys = 0.33 V Typ at 3.3 V
– Vhys = 0.5 V Typ at 5 V
• 5-V Tolerant I/O ports
• Active-low reset input ( RESET)
• Open-drain active-low interrupt output ( INT)
• 400-kHz Fast I2C Bus
• Input/output configuration register
• Polarity inversion register
• Internal power-on reset
• Power up with all channels configured as inputs
• No glitch on power up
• Noise filter on SCL/SDA inputs
• Latched outputs with high-current drive maximum capability for directly driving LEDs
• Latch-up performance exceeds 100 mA per JESD 78, class II
• ESD protection exceeds JESD 22
– 2000-V Human-body model (A114-A)
– 200-V Machine model (A115-A)
– 1000-V Charged-device model (C101)
Description of TCA6424ARGJR
This 24-bit I/O expander for the two-line bidirectional bus (I2C) is designed to provide general-purpose remote I/O expansion for most microcontroller families via the I2C interface [serial clock (SCL) and serial data (SDA)]. The major benefit of this device is its wide VCC range. It can operate from 1.65 V to 5.5 V on the P-port side and on the SDA/SCL side. This allows the TCA6424A to interface with next-generation microprocessors and microcontrollers on the SDA/SCL side, where supply levels are dropping down to conserve power. In contrast to the dropping power supplies of microprocessors and microcontrollers, some PCB components, such as LEDs, remain at a 5-V power supply.
Environmental & Export Classifications of TCA6424ARGJR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
