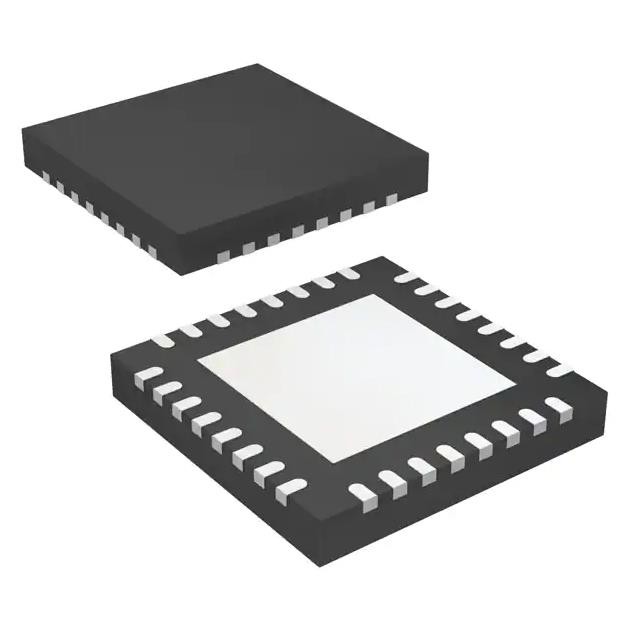

LMH6521SQE/NOPB Amplifier IC Signal Processing Vgain Amp 32wqfn
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LMH6521SQE/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Type: | Variable Gain Amplifier |
|---|---|---|---|
| Applications: | Signal Processing | Mounting Type: | Surface Mount |
| Package / Case: | 32-WFQFN Exposed Pad | Supplier Device Package: | 32-WQFN (5x5) |
| Base Product Number: | LMH6521 | Mfr: | Texas Instruments |
Product Description
LMH6521SQE/NOPB Transistor Ic Chip Ic Vgain Amp 32wqfn
Variable Gain Amplifier IC Signal Processing 32-WQFN (5x5)
Specifications of LMH6521SQE/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Special Purpose Amplifiers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Type | Variable Gain Amplifier |
| Applications | Signal Processing |
| Mounting Type | Surface Mount |
| Package / Case | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-WQFN (5x5) |
| Base Product Number | LMH6521 |
Features of LMH6521SQE/NOPB
• OIP3 of 48.5 dBm at 200 MHz
• Maximum Voltage Gain of 26 dB
• Gain Range: 31.5 dB with 0.5-dB Step Size
• Channel Gain Matching of 0.04 dB
• Noise Figure: 7.3 dB at Maximum Gain
• –3-dB Bandwidth of 1200 MHz
• Low Power Dissipation
• Independent Channel Power Down
• Three Gain Control Modes:
– Parallel Interface
– Serial Interface (SPI)
– Pulse Mode Interface
• Temperature Range: –40°C to +85°C
• Thermally-Enhanced, 32-Pin WQFN Package
Applications of LMH6521SQE/NOPB
• Cellular Base Stations
• Wideband and Narrowband IF Sampling Receivers
• Wideband Direct Conversion
• Digital Pre-Distortion
• ADC Drivers
Environmental & Export Classifications of LMH6521SQE/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
